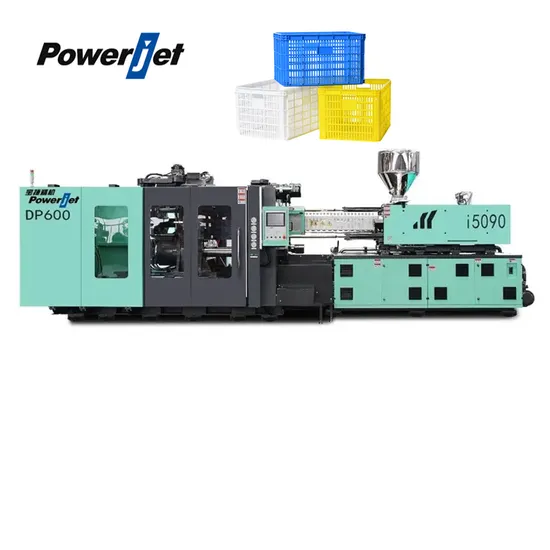

700ton Fruit Vegetable Basket Crates Plastic Injection Molding Molding Machine Machinery

Product Description

Details Images
High Efficiency
Low Energy Consumption
More Dedicated


The high-pressure clamping adopts movable platen clamping structure, which is fixed by a high-pressure tie bar, which is reliable in sealing, does not leak oil, and the tie bar is durable.


The ejector cylinder contains a converted structure, which ensures the whole machine more short and occupy less space.

Innovative holding brake structure, adjusting the holding brake with high speed and reliability, low noise and accurate synchronization.

Four independent high-pressure oil cylinders innovative structure for quick and stable pressure rising and releasing, easy maintenance.
Large mold opening stroke, high-speed and stable mold opening and closing, high efficiency.

Ultra-wide space of the mold clamping area, large core pulling space and easy operation.

The mold clamping unit is automatically lubricated with grease, clean, low maintenance cost, simple and convenient.
The movable platen adopts linear guider with low resistance, low energy consumption, stable moving and accurate positioning.

Equipped with servo electric charging, high speed rotate, low noise, low energy consumption, compared with traditional hydraulic motor charging, saving power cost more than 30%.

Specification

	DESCRIPTION	UNIT	DP1000-S6
CLAMPING UNIT	Clamping force	KN	10000
		Opening stroke	mm	2100/1300
		Max.daylight	mm	2600
		Space between bars	mm	1300*1100
		Max.mold height	mm	1300
		Min.mold height	mm	500
		Ejector stroke	mm	350
		Ejector force	KN	210
INJECTION UNIT	Screw diameter	mm	130
		Screw L/D Ratio	L/D	23.7
		Injection Pressure	MPa	193
		Shot volume	cm3	8960
		Shot weight (ps)	g	7996
				oz	282
		Injection rate	g/s	915
		Plasticizing capacity	g/s	138
		Screw stroke	mm	575
		Screw speed	rpm	115
POWER UNIT	Hydraulic system Pressure	MPa	17.5
		Pump motor power	KW	52+60
		Heater power	KW	61
GENERAL	Oil tank capacity	L	1250
		Machine weight	T	44
		Machine dimensions (L*W*H)	m	9.5*3.4*2.9

Why Choose Us

VR
Powerjet has become the booming power in the professional plastic machinery industry.
Since founded in 2000, Powerjet has worked with customers all along. Focusing on every customer need.
Using "innovation plus exemplary case". surpassing customers needs to realize the win-win cooperation. Its equipment has enjoyed a good reputation both at home and abroad. With the technological accumulation for 20 years. The world's top technological team has been established. Being market -oriented to constantly innovated and upgrade products, devoting to reduce customers' operating costs, providing the high-quality, innovative and optimal solution of plastics manufacture.

POWERJET is a high and new technology enterprise of injection molding machine and blow molding machine.
POWERJET PLASTIC MACHINERY co., LTD. was founded in 2000, the headquarter is located in Foshan high tech Industrial Park, Sanshui, Foshan in Guangdong Province, occupying an area of 130,000 square meters. Advanced equipments like CNC imported from Mitsubishi, OKUMA, DOOSAN are introduced, POWERJET is a high and new technology enterprise of R &D, manufacturing, sales, after-sales service of injection molding machine and blow molding machine.

To ensure the timely product delivery with the extremely fast production cycle. And ensure the qualified product. We integrate the craftsmanship spirit into each detail. Passing the international ISO and CE certificates and Korean KCS certificate. To freatly ensure the low energy consumption, high precision and reliability of Powerjet products.
SALES AND SERVICE NETWORK
We have established the global marketing network. To deliver the value of Powerjet injection molding machine and extrusion blow molding machine to over 100 countries area. Multiple senior managers and business elites worldwide. Become the trustworthy partners. Provide the most thoughtful service and fastest user support for you constantly. sincerity for you.
Customer Photos

FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 20 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located in No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.
