Brick Making Machine Small Automatic Extruder Soil Clay Soil-Brick-Making-Machine Tile Making Machinery

Product Description

Product Overview

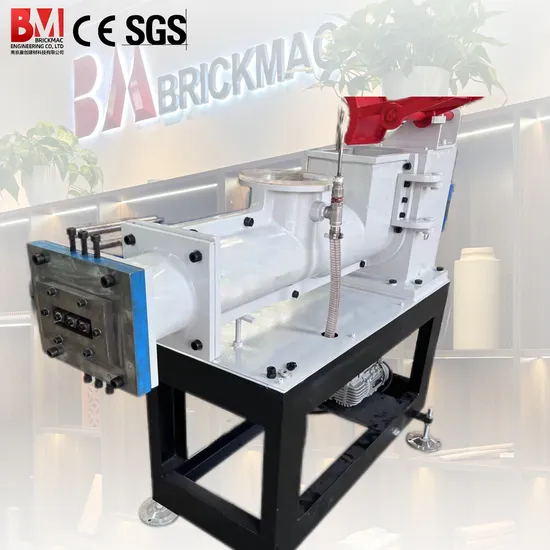

Extruder (Experiment purpose) KLJ18/15
The extrusion pressure of this machine is stable, the vacuum degree is high, and the cleaning is very convenient.length Only 10 bolts are needed to be completely disassembled, and it can be applied to pre-formula extrusion experiments of various materials, thereby avoiding waste caused by large-scale equipment experiments.Multiple formula tests can be done, which greatly improves the test efficiency and reduces the test cost.Hardened gear reducer and variable frequency speed regulation. A single experiment uses about 50 kg of raw materials.Comes with standard vacuum gauge. FEATURE AT A GLANCE
Flexible
Only 10 bolts are needed to be completely disassembled, and it can be applied to pre-formula extrusion experiments of various materials, thereby avoiding waste caused by large-scale equipment experiments.

Easy To Clean
The screws are removable to facilitate cleaning of internal deposits.

Good Quality&High Efficiency
The extrusion pressure of this machine is stable, the vacuum degree is high, and the cleaning is very convenient.length

Descriptions
Model No.					KLJ18/15
Output					300 Kg / Hour
Voltage					380 v
Frenquency					50 hz
Extrusion pressure					2.5 Mpa
Dimensions					1200*700*1400 mm
Total weight					700 kg
Max extrusion width					≤120 mm
Max extrusion height					≤60 mm

SUCCESSFUL PROJECT

Certifications

Company Profile
Nanjing Brickmac Engineering Co., Ltd.
is professional turn-key brick project provider and brick making machinery supplier in Nanjing, Jiangsu Province, China.
We provide:
a) Turn-key design and technical consultation of bricks/tiles production line;
b) Manufacturing and set up of brick/tile machinery, dryer and kiln.
We export machinery to over 15 countries including Vietnam, India, Nepal, Uzbekistan, Malaysia, South Africa, etc. Our product range including Box feeder, Crusher, Mixer, Vacuum Extruder, Brick Cutter, Bricks Loading & Unloading system,
Robotic Setting Machine, Tunnel Dryer, Chamber Dryer, Tunnel Kiln, Assembly tunnel kiln, Kiln Gas Burner, Bricks Packing
System, etc.
