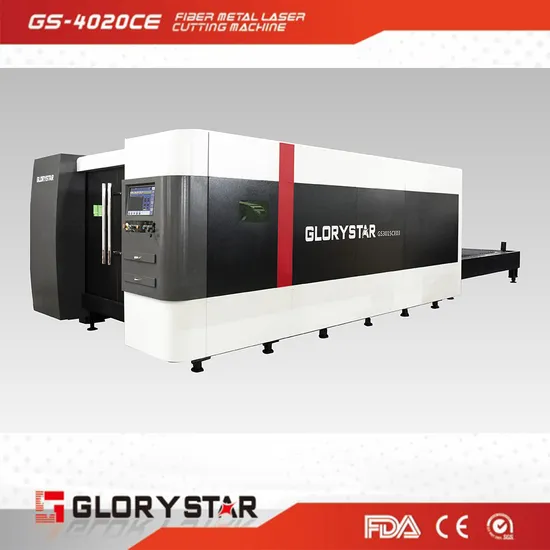

2000W Efficient Fiber Laser Cutting Machine

Product Description

2000W Efficient Fiber Laser Cutting Machine
1.Fiber laser generator is for cutting all the metal sheets.
2.Gantry double drive structure and automatic exchange worktable to make the cutting more efficient.
3.Compared with YAG and CO2 laser cutting machine, fiber laser cutting machine has the processing cost advantage absolutely.
4.All the key transmission parts is originally imported from Germany(servo motor, gear and rack, reducer etc).
Technical Specifications

Woking area (L*W)	4000mm×2000mm	Floor size	10000mm×3600mm
X axis travel distance	4030mm	Main body dimension	10000mm×3600mm×2000mm
Y axis travel distance	2020mm	CNC system	BECKHOFF
Z axis travel distance	105mm	Screen	17″LCD
Laser Power	2000W
X/Y axis geometry positioning accuracy	≤0.05mm (of total distance)	Transmission Mode	Pinion and Rack Double Drive
X/Y axis repeat positioning accuracy	≤0.03mm	Worktable max. weight capacity	1000Kg
X/Y axis max. positioning speed	100m/min	Frame weight	8T
X/Y axis max. acceleration	1.2G	Overall installed electricity capacity	<18KW
Cutting kerf width	0.1mm-0.5mm	Phase	3
Cutting surface roughness	Ra3.2-25.4um	Rated Voltage	380V
Cutting capacity	0.5mm-18mm	Frequency	50Hz
Min. setting unit	0.001mm	Total power protecting level	IP54

Cost-effective: Fiber lasers with high electro-optical conversion efficiency, the photoelectric conversion efficiency of fiber laser is 15 times higher than the traditional laser, high electro-optical conversion efficiency makes the power consumption of machine and chillers to be the lowest. It is currently the most efficient mainstream stable-performance laser generator.
Perfect spot quality: the same fiber laser generator can be used for welding, cutting and drilling.
Low consumable parts: there is no need for replacement of lamps or bar sticks.
High stability: Fiber laser series adopt the design to make resonance cavity in the optical fiber, to ensure high-power laser output, meanwhile, reduce the volume of the laser generator, improve the beam quality, beam propagation in the fiber, the light path is not exposed to the air to avoid contamination of the optical path and has long-running stability. Therefore, surface laser cutting machine can mate in more demanding industrial environments, and long working life.
Machine Body:
bed adopts welded steel box type (not square tube welding), entire high-temperature annealing, stress relief treatment; guide-rail base is milled by large gantry milling machining at one time.
Host part is composed of the bed, cross-gride, worktable, Z-axis device, control system, gas unit, water unit and other components.
System controls X, Y, Z-axis AC servo motor, thereby driving the cutting head to achieve stable, reliable, high-speed reciprocating motion.
Fully enclosed device, wherein the dust cover light weight can achieve reliable operation;
X, Y axis linear guide are imported precision products, the use of photoelectric sensors and other precision positioning components effectively ensure the accuracy of the drive.
Long range Z-axis travel, it can easily process finished products.
Samples
After-sale Sevice
<<< We offer professional after-sales installation and guidance, after-sales online. we can be remotely controlled by teamviwer, to help customers solve the problem.
<<< For on-line not solve the problem, we will arrange technical personnel to the customer's company offer after-sales service
<<<Equipment warranty period of one year, optical lenses can not be maintained. Laser generator has 12months warranty, machine maintenance of life.
