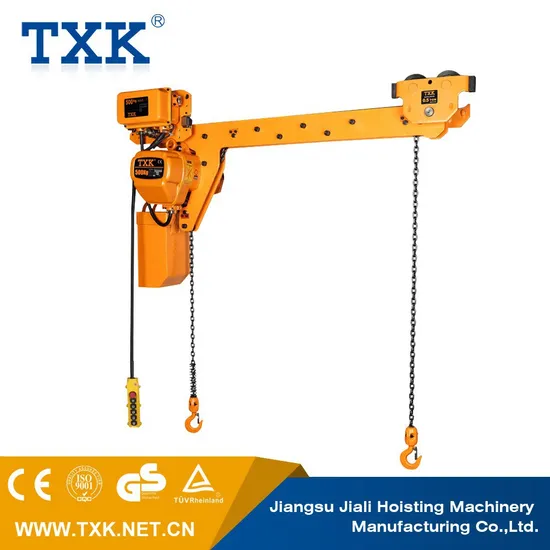

Lifting Equipment Txk 3 Ton Double Hooks Electric Chain Hoist Crane
Basic Info.
Model NO.
SSDHL1.5+1.5G
Application
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
Type
Chain Hoist
Sling Type
Chain
Lift Speed
2~8m/min
Maximum Lifting Height
>20m
Chain Falls
1
Certification
CE, ISO9001:2000, SGS
Condition
New
Color
Yellow
Certificate
CE,TUV
Power Supply
220V~690V,50/60Hz
Lifting Height
0~50m Available
Logo
Customizable
Transport Package
Plywood Case
Specification
76x67x62cm
Trademark
TXK
Origin
China
HS Code
84251100
Production Capacity
5000 Sets/Month
Packaging & Delivery
Package Size
1000.00cm * 60.00cm * 70.00cm
Package Gross Weight
150.000kg
Product Description
Product DescriptionTXK Electric Chain Hoist
1. Aluminum alloy shell , light but hard .
2. G80 Load chain or Japan FEC G80 load chain, can be used in harsh environment .
3. Hook: hot forged with perfect strength , hard to break .
4. Push button, remote control : imported from Taiwan .
5. Three phase & Single phase electric chain hoist, both optional
Product Parameters
| Twin Hook Hoist | Technical Parameters | ||||
| Model | SSDHL | ||||
| 0.25+0.25t | 0.5+0.5t | 1+1t | 1.5+1.5t | 2.5+2.5t | |
| Capacity(t) | 0.5t | 1t | 2t | 3t | 5t |
| Lifting Speed(m/min) | 7.2 | 6.6 | 6.6 | 5.4 | 2.7 |
| Motor Power(Kw) | 0.8 | 1.5 | 3.0 | 3.0 | 3.0 |
| Rotation Speed (r/min) | 1440 | ||||
| Insulation Grade | F | ||||
| Power Supply | 3P 220V ~ 690V/50HZ | ||||
| Control Voltage | 24V/36V/48V | ||||
| No. of Chain | 2*1 | 2*1 | 2*1 | 2*1 | 2*2 |
| Spec. of Load Chain | ø6.3 | ø7.1 | ø10.0 | ø10.0 | ø11.2 |
Detailed Photos
Packaging & Shipping
Company Profile
JIALI MACHINERY CO., LTD
TXK is a professional manufacturer of electric chain hoist. Our factory covers a total area of 56,000 square meters in Jiangsu Province, which is four hours visit from Shanghai airport.
We mainly supply TXK brand electric chain hoist, manual chain hoist and other related assembly products. Our products are widely used in molds, mechanical manufacturing, logistics, railways,shipbuilding, construction of bridges, the assembly line and so on.
