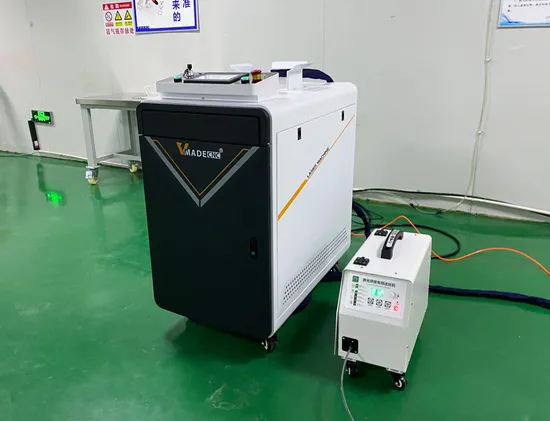

4 in 1 Fiber Laser Welding Cutting Cleaning Machine

Product Description

Product Description
Hand-held fiber optic transmission laser welding cutting cleaning machine has a 5-meter-long imported fiber optic connection laser head, it can be long-distance welding on the product that is large and not easy to move, because the reasons for fiber transmission, laser energy is more concentrated, can be welded 2mm stainless steel metal. It can do spot welding, butt welding, stack welding, sealing welding, and complete the complex plane straight line, arc and any trajectory welding. High welding efficiency, good effect, easy to operate.
1.Easy operating need no training
welding seam beautiful smooth and beautiful, don't need polish, save your time
No deformation or welding scar, firm welding of the workpiece.
2.Easy Maintance
Laser welding has less consumables and long service life.Safer, more environmentally friendly.

Laser welding a high efficient precision welding method which is in the use of high energy density laser beam as a heat source . Laser welding is one of the important aspects of laser processing technology. Laser radiates and heats the workpiece surface, The surface heat diffuses to the inside through heat conduction, Then the laser makes the workpiece melting and form the specific welding pool by controlling the laser pulse width, energy, peak power and repetition frequency. Due to its unique advantages, it has been successfully applied to the precise welding for micro parts and small parts.
Laser welding is fusing welding technology, laser welder puts laser beam as the energy source, and make it impact on the weldment joints to realize welding .

Items	Parameter
Machine Model	Hand-Held fiber laser wleding machine
Laser power	1000W,2000W,3000W
Laser wavelength	1070nm
Fiber length	standard10M ,max 15M
Operate mode	continuation/modulate
Welding speed range	0-120mm/s
Cooling type	industrial water chiller
Working environment	15-35ºC
Welding thickness	0.5-5mm
welding gap requirements	≤0.5mm
working voltage	220V

Product Parameters

Model	VLF	Laser Power	1000W / 1500W / 2000W / 3000W
Range of Adjustable Power	1-100%	Laser Wavelength	1064nm
Fiber Length	Standard 10m, maximum support 20m	Way of Workinging	Continuous / Modulation
Speed Range	0-120mm/s	Repeat Precision	±0.01mm
Welding Gap Requirements	≤0.5mm	Cooling Water	Industrial thermostatic water tank
Working Temperature	15-35ºC	Working Humidity	<70% no condensation
Voltage	380V	Focal Spot Diameter	0.2-2mm
Welding Depth	0.1-4mm	Pulse Frequency	0.1-100Hz

		Max welding dept
No.	Material	1kw	1.5kw	2kw	3kw
1	Stainless Steel	≤2mm	≤3mm	≤5mm	≤7mm
2	Mild steel/Iron	≤3mm	≤4mm	≤6mm	≤8mm
3	Aluminum/brass	≤2mm	≤3mm	≤4mm	≤6mm
4-in-1 machine. One machine can do weld/clean/cut/weld cleaning

Packaging & Shipping
Company Profile
Certifications
FAQ
Q1 :How about warranty? A1:2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period. Q2:2 I don't know which one is suitable for me ? A2:Please tell me your 1) Max work power:choose most suitable model. 2) Materials and welding thickness::choose most suitable power. Q3:Payment terms? A3:trade assurance/TT/West Union/Payple/LC/Cash and so on. Q4:Do you have CE document and other documents for customs clearance? A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance. Q5:I don't know how to use after i receive Or i have problem during use,how to do? A5:1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine. 2) If have any problem during use,you need our technician to judge The problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need. Q6:Delivery time A6:General configuration:7 days. Customized:7-10 working days.
