New Style Flyknit Vamp Knitting Machine, Changshu Manufacturer

Product Description

HAVE YOU MEET GSJX WALK WITH KNITTER PROFESSIONAL OF KNITTING MACHINERY
With 25 years of product upgrade,and 25 years of service improvement,
Guosheng is now at the very forefront of world's smart manufacturer of knitting machines.It undertakes the task of improving
the performance of the whole products,and join hands with the knitter to constantly make significant contributions to the
standardization of the world's knitting machine.
REASONS TO BUY IT

You will get free machine operation training & pattern-designing training as soon as you buy our machine now.
Mature and attentive service is what Guosheng hold as the principle of service,machine operation training for free and
pattern-designing training for free to free customers .
One year warranty period
Guosheng has stable inventory and efficient production capacity
It is our responsibility to give you a satisfactory purchasing experience.We pursue quantity and quality.Guosheng has a complete
inventory system, which can meet the needs of every customer, and sets the delivery period at about 10 days.We also accept
private orders,and if you require customization, our assembly line can effectively improve work efficiency and greatly shorten
the delivery time.
It's an efficient, high-quality machine you can't miss it
1) The cam structure optimization,used the motor model,greatly improved the speed of needle transfer.
2) Small carriage,can return fast,improved work efficiency.
3) Cooperating the yarn storge improved the flatness of fabric.
4) Needle plate adopts the milling flute method with simple structure,it can sustain high efficiency working after heat treatment.
Product Application

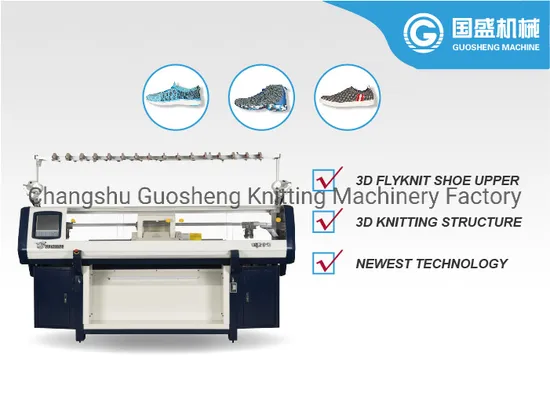

This is computerized flat knitting machine with single carriage single system. This series is economictype.flat knitting machine
applies digital technology to achieve tranfers,tuck,eyelet stitch,jacquard,apparent shape,hidden shape and other regular pattern
knitting functions. Flat knitting machine can knit basic stitch like plain stitch, rib fabric, links and links, interlock stitch, etc. irre

SPECIFICATIONS FOR FLAT KNITTING MACHINE
Model	GSJX-2-52
Gauge	5G,6G,7G,8G,9G,10G,12G,13G,14G,15G,16G
Knitting Machine	Double System,Single Carriage
Knitting Width	44inch,52inch,60inch,80inch,100inch
Knitting Speed	Max 1.2m/s
Knitting Function	Tranfer,Tuck,Miss,Jacquard,Intarsia,Hide or Apparent Shaping
Stitch Density	Stitch system controlled by stepping motor,32 section stitch selectable,adjustable scope supported by subdivision technology:0-650.
Racking	Controlled by AC servo motor,racking within 2 inches and with fine adjusting function.
Drive System	Synchronous belt drive,AC servo system.
Needle Selection	Controlled by computer,electric magnet needle choose system with high efficiency.
Yarn Carrier	1*8 yarn carriers on each side of 4 guide rails,shiftable on any needle position.
Take Down Roller	Programmed instruction controlled by stepping motor,32 section levels selection adjustable area:0-100.
Protection System	The machine will automatically alarm if yarn breaking,float yarn,rewind,end of knitting,fail of racking,needle breakage and error programming occur ect.
Control System	1.Adopt LCD screen,input device:USB,system memory 256MB,a great amount of design files can be stored. 2.Monitoring menu,each knid of operating parameter,can be shown,and they can be adjusted at any time when the machine is running. 3.Design system is visual and easy to understand and upgrad. 4.Multi language version ,there are chinese,english etc.
Power	220v,single-phase,have memorizing function at the power-off moment.

Certifications
We take care of every product like a child
To make sure the product is safe during transportation,we use vacuum package to prevent moisture and rust.In addition,we
provide complete packaging methods according to your requirement,and provide convenience for loading,uploading and storage
as well as save time for checking and delivery.Make sure you can receive proper product at a proper time.
