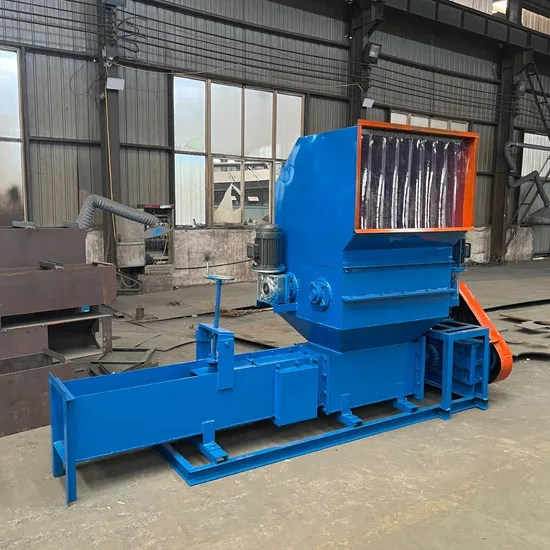

Automatic EPS Polystyrene Cold Compact Machine with Shredder Shafts
| US$3,000.00-5,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
300/400
Crushing Style
Grinding and Impact
Cutter Material
High-Speed Steel
Finished Surface
Outer Surface Process
Compressive Strength (for Crushing)
>300MPa
Tongs′ Features
Adjustable Tongs
After-Sales Service
Yes
Warranty
12 Months
Type
Knife Crusher
Object
Polystyrene
Principle
Na
Shafts Qty
2 PCS
Control Box
Yes
Pressing Plate
Adjustable
Reducer
Yes
Transport Package
Plywood Box
Specification
300/400
Trademark
Myaid
Origin
China
HS Code
8477800000
Production Capacity
100 Sets Per Month
Product Description
EPS Polystyrene Cold Compact machine can crush and compact loose foam materials into high density EPS polystyrene briquette.* Two shredding shafts
* Hard teeth reducer
* Control box
* Shred and compact function
* Optional conveyor
Machine Application
Machine Advantage
Machine Parameter
| Model | 300 | 400 |
| EPS Briquette Size | 300*300mm | 400*400mm |
| Total Power | 21kw | 28kw |
| Crushing Motor Power | 3 kw*2 | 3 kw*2 |
| Capacity | 150 kg/h | 250kg/h |
| EPS Compressing Ratio | 50:1 | 50:1 |
| Hopper Size | 900*750 | 1000*750 |
| Machine Size | 3810*1048*2250 mm | 3900*1100*2200mm |
| Machine Weight | 1850kg | 2200kg |
| Power Supply at Default | 380V 3phase 50Hz | 380V 3phase 50Hz |
FAQ
Q: How to compact loose foam ? What is the parts to compact inside machine?
A: There is a screw to compress and convey the shredded foam materials in the chamber.
Q: Can it compact packaging foam box?
A: Yes.
Q: What is the benefit from the machine?
A: It can densify the big size loose foam materials into small size but big density briquette which is easy to transport.And EPS briquette can keep EPS physical characteristics well.
