Hualong Machinery High Precision 3/4/5 Axis Granite Engraving Machine CNC Stone Engraving Machine

Product Description

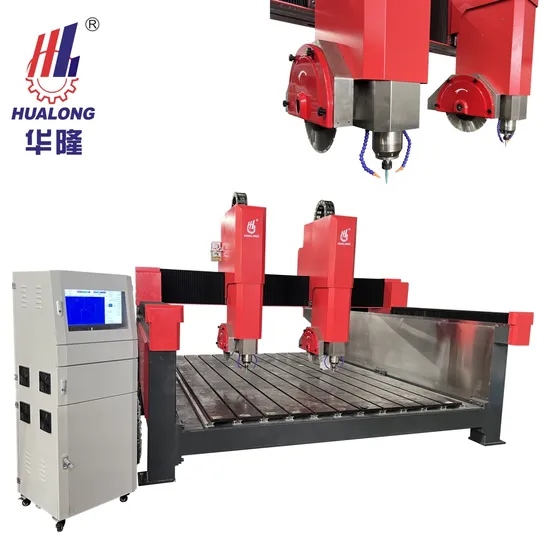

CNC Stone Carving/Cutting Machine HLSD-2637-saw equipped with NCstudio CNC control system, Support double or single saw blade cutting and engraving at the same time,is a reliable and versatile machine for engraving, drilling, lettering, cutting all kind of stones, such as marble, granite, quartize, sandstone or artifical stone or ceramics, glass. It's also workable for die industry: copper sculpture, aluminum engrave, metal molds, plastic sheeting, PVC , etc.
Main Features

1) Adopt NcStudio CNC control system large color screen display, easy and simple to operate.
2) Break to rusume function. Continue carving from break point after power resuming from failure.
3) Compatible with Artcam JD Paint CAM software and other software programs. 4) High-performance new material motors and drivers can resist heat, shock and bad environment, ensure the working high speed and accuracy..
5) Professional vector control Inverter guarantee the variety working speed, smooth operation and make lower power consumption.
6) Aircraft-quality surface oxidized aluminum profile table which adding thicken PVC board, Enhancing the loading capacity of the platform.
7) Steel tube lathe bed, low center of gravity, strong bearing capacity, stable and long working life.
8)Support double or single saw blade cutting and engraving at the same time.
Application: * Bas-reliefs, * Line engraving Cutting, Edge inversing * Funeral tablets/gravestones, Milestones
* commemorative plates
* Furniture, Fireplace.
* Countertops, Sink hole, grooving, shower trays

TECHNICAL DATA
Model No.	HLSD-2637-saw
Workbench dimension	2600*3700mm
Number of working head	1 pcs
Gantry height	410 mm
Feeding height	≤ 360 mm(customizable)
Spindle power	3.7 /4.5 / 5.5 kw (customizable)
Spindle rotating speed	6000-24000 rpm/min
Max. moving speed	30000 mm/min
Diameter of engraving tool	ø1-16 mm
Positioning precision	+/- 0.03 mm
Repeat positioning accuracy	+/- 0.02 mm
Command code	G code
Driving system	Step / Hybrid servo / Servo (customiable)
Cooling system	Water cooling
Gross power	24 kw
Gross weight	3000 kgs
Dimensions (L x W x H)	4600*3600*2410mm

Machines with different quantity head are customizable
Saw blade/carving head--engraving
Support double or single saw blade cutting and engraving at the same time.
Control system -- CNC
Brand: NCStudio Original: China
NCstudio CNC system, large screen display, easier to operate and maintain, more humanized design
Water-cooling Spindle
Power: 3.5/4.5/5.5 kw (customizable)
Rotating Speed: 6000-24000 rpm/min
Frequency changing water cooled spindle with high-speed bearing technology, make low noise, fast response, high rotational speed and safeguard stability for longtime work.
Guide Rail, Ball screw
Origin: Taiwan, China
High quality guide rail, ballscrew, rack used on X, Y and Z axises provide smooth motion and tight control for precise and quality engraving.
Auto Lubricating System
Automatic oil feedingand lubrication system makes the regular maintenance very easy and reduce waste.
Hand Wheel (Optional)
Remote or close to control the movement of working heads, especially convinient for positioning the original processing point.
Q: Are you manufacturer ?
A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service.
Q: Can I get a machine according to my own requirements?
A: Sure. Welcome OEM and ODM orders.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well.
Q: What's your MOQ and delivery?
A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.
Q: How is your after sales service?
A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance.
Q: If my machine is broken. Can you repair it for me?
A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.
