Good Quality Disposable Paper Cup Making Machine Kzb-115s
Basic Info.
Model NO.
KZB-115S
Cup Size(Ounce)
3-16oz
Speed
100-120pcs/min
Required Paper
Single and Double Side PE Coated Paper
Automation
Automatic
Logo Printing
With Logo Printing
Certification
CE
Customized
Customized
Condition
New
After-sales Service
1 Year
Transport Package
Wooden Packing
Specification
L: 2100mm; W: 1200mm; H: 1800mm
Trademark
Koten
Origin
China
Product Description

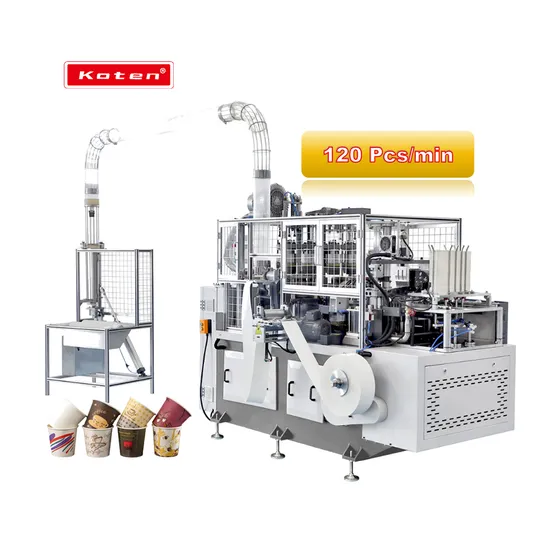

Paper Cup Machine KZB-115S The paper cup machine is a paper container made from raw paper (white cardboard) made of chemical wood pulp, which is mechanically processed and bonded. It has a cup shaped appearance and can be used for frozen food and hot drink items. Featuring safety, hygiene, lightweight, and convenience, it is an ideal equipment for public places, restaurants, and restaurants. Bonding process: The equipment has a heating station to heat the PE film on the surface of the PE coated paper and compact it through the side and bowl bottom pressing mechanism. After cooling, a solid bonding effect can be achieved.
| Model | KZB-115S | |
| Paper Bowl Size | 3-12OZ | |
| Raw Material | Both sheets can be coated | |
| Max.Speed | 100-120pcs/min | |
| Suitable paper weight | 160-300g/m²;±20g/m² | |
| Voltage supply | 380V(220V) | |
| cup size | bottom 35-62mm, top 45-90mm, high 35-115mm | |
| Working | 0.4-0.6Mpa;0.4m³/min | |
| General power | 11KW | |
| Weight | 2800kg | |
| Measurement(mm) | machine | L:2300mm; W:1200mm;H:1800mm |
| Cup holder | 100kgs | L:900mm;W:600mm;H:1500mm |
| Cup Side Sealing | EVERGREEN UItrasonic | |
| Bottom | HOT AIR SYETEM | |
| Item | Brand | Origin |
| Main motor | Zhibao | Shanghai |
| Knurling motor | Li Chao | Shanghai |
| Bottom feeding motor | Mig | Hangzhou |
| Lubrication motor | TROCHOLDPUMP | |
| Touch machine | Delta | Taiwan |
| Main power supply | chint | Zhejiang |
| PLC | Delta | Taiwan |
| Drive Sheave | Cam | Shandong |
| ultrasonic | Kejian | Zhejiang |
| Button switch | Delta | Taiwan |
| Temperature module | Otonix | Korea |
| Pneumatic components | Hongyuan |
