Csp Tower Heliostat 500 Degree Celsius 10.06 by 9.73 Meters for Solar Thermal Power Generation
| US$800.00-860.00 | 200 Square Meters (MOQ) |
Basic Info.
Model NO.
96m2
Certification
API, ISO, CB, CE
Concentrating
Yes
Working Temperature Range
High Temperature
Type
Pressurized
Application
Water Heater, Solar Thermal, Air Conditioning System
Pipe Material
Stainless Steel
Transport Package
Wooden Box, Steel Structure
Specification
96m2
Trademark
MLSUN
Origin
China
Production Capacity
500000m2/Year
Packaging & Delivery
Package Size
160.00cm * 250.00cm * 200.00cm
Package Gross Weight
3704.000kg
Product Description

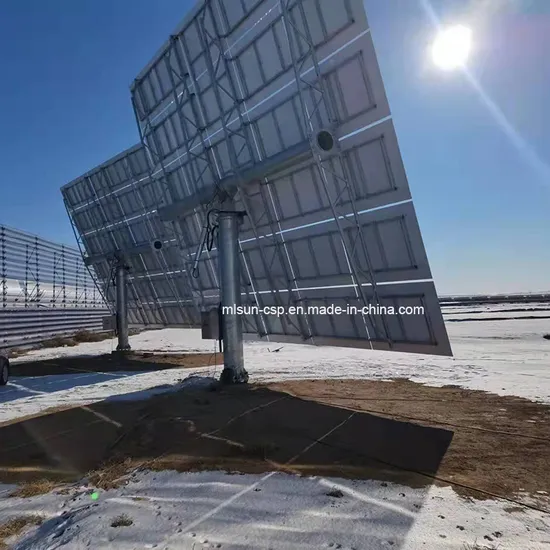

Tower Heliostat is used for CSP solar thermal power projects to generate electricity.We manufacture 6 regular sizes of Tower Heliostats.
Special sizes are customizable.
| No. | Model | H18 | H20 | H67 | H96 | H125 | H140 |
| 1 | Tower Heliostat | 5.34m*3.69m | 5.53m*3.7m | 9.23m*7.47m | 10.06m*9.73m | 11.32m*11.34m | 13m*10.94m |
| 2 | Aperture area | 18 m2 | 20 m2 | 67 m2 | 96 m2 | 125 m2 | 140 m2 |
| 3 | Mirror size | 1.22m*1.83m | 1.22m*1.83m | 1.22m*1.83m | 1.605m*2.5m | 1.6m*1.4m | 1.605m*1.35m |
| 4 | Mirror quantity | 8 pieces | 9 pieces | 30 pieces | 24 pieces | 56 pieces | 64 pieces |
| 5 | Driving system | two-axis | two-axis | two-axis | horizontal and pitching two-way hydraulic push | horizontal and pitching two-way hydraulic push | horizontal and pitching two-way hydraulic push |
| 6 | Steel structure weight | 324 kg | 378 kg | 1440 kg | 2326 kg | 3540 kg | 3332 kg |
| 7 | Gross weight | 540 kg | 669 kg | 2310 kg | 3704 kg | 5150 kg | 5032 kg |
| 8 | Working wind spead | 11 m/s | 11 m/s | 11 m/s | 11 m/s | 11 m/s | 11 m/s |
| 9 | Max. wind spead | 33 m/s | 33 m/s | 33 m/s | 33 m/s | 33 m/s | 33 m/s |
| 10 | Tracking accuracy | 1 mrad | 1 mrad | 1 mrad | 1 mrad | 1 mrad | 1 mrad |
| 11 | Pitch angle | -30°~90° | -10°~90° | -10°~90° | -10°~90° | -10°~90° | -10°~90° |
| 12 | Azimuth angle | 0°~340° | 0°~340° | 0°~340° | 0°~340° | 0°~340° | 0°~340° |
| 13 | Life time | 25 years | 25 years | 25 years | 25 years | 25 years | 25 years |
