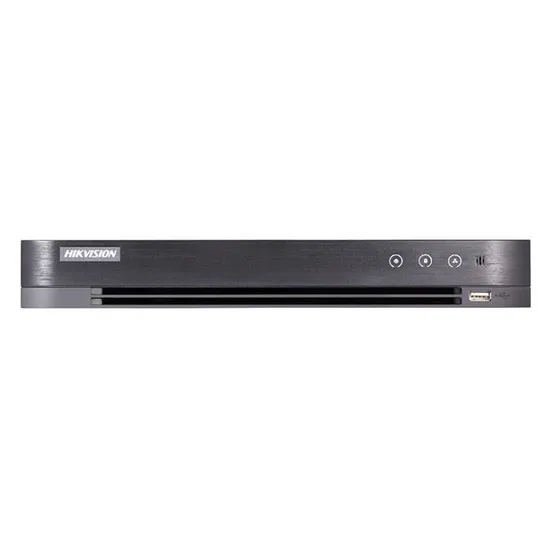

4 Channel Hdtvi/Ahd/Cvi/CVBS/IP 5 in 1 DVR Ds-7204hqhi-K1 4CH 1080P 1u H. 265 CCTV DVR

Product Description

4 Channel HDTVI/AHD/CVI/CVBS/IP 5 in 1 DVR DS-7204HQHI-K1 4CH 1080P 1U H.265 CCTV DVR

Product Parameters

4 CH 1080P 1U H.265 DVR
4 channels and 1 HDD 1U DVR
Efficient H.265 pro+ compression technology
Encoding ability up to 1080p @ 15 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP).
Up to 6 network cameras can be connected
RecordingVideo CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264Encoding ResolutionWhen 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,Frame RateMain stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),Video Bit Rate32 Kbps to 6 MbpsDual StreamSupportStream TypeVideo, Video & AudioAudio CompressionG.711uAudio Bit Rate64 KbpsVideo And AudioIP Video Input2-ch (up to 6-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP camerasAnalog Video Input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connectionAHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30HDCVI Input1080p25, 1080p30, 720p25, 720p30CVBS InputPAL/NTSCAudio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)Audio Output1-ch, RCA (Linear, 1 KΩ)Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)Synchronous Playback4-chHDTVI Input4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.,VGA/HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60HzCVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480NetworkRemote Connections32Network ProtocolsTCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIFNetwork Interface1, RJ45 10M/100M self-adaptive Ethernet interfaceAuxiliary InterfaceSATA1 SATA interfaceCapacityUp to 10 TB capacity for each diskAlarm In/OutN/AUSB Interface2 × USB 2.0Serial InterfaceRS-485 (half-duplex)GeneralPower Supply12 VDCWorking Temperature-10 °C to +55 °C (+14 °F to +131 °F)Working Humidity10% to 90%Dimensions (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)Weights (Without HDD)≤ 1.16 kg (2.6 lb)Consumption (Without HDD)≤ 6 W

Company profile

Beswind Technology Limited mainly focuses on the distribution of security products from the three top manufacturers from China-Hikvision, Dahua and Uniview. We have been working in this field since 2010 and we have established long-term and stable relationship with these factories. The products we sell including stand-alone DVR, NVR, IP camera, HDCVI camera, video intercoms, access controls products, alarm products, accessories and so on with international version. We have great advantage on prices and after-sales service amoung the other competitors from China. We adhere to the principle of "Customer Upmost, Service First", so, we always try our best to do win-win business with our customers. We have exported to many countries and regions including Europe, America, Asia, Australia and so on.
OEM orders are acceptable. In addition, we own an purchasing department with professional staff who are professional on sourcing different products for customers who need our help. Your trust is our great honor! Your satisfaction is our pursue. We will continually create new products to satisfy your individual needs. We will make great efforts to offer excellent pre-sales, sales and after-sales service. We are sincerely looking forward to your cooperation!

certificate

Payment / Shipping

FAQ

Q:1.How to confirm whether the product is Dahua and Hikvision genuine English version?
You can download software in the official website of Dahua and Hik vision,only Dahua and Hik vision genuine product is compatible with the software.And we promise all of our products are Dahua and Hikvision genuine products.
Q:2. Do you supply OEM service?
Yes, we are professional OEM/ODM manufacturer and can meet all customized services.
Q:3.What is Minimum Order Quantity?
Sample order is welcomed, while the price is more competitive for big quantity .
Q:4. What is your terms of payment?
A: Usually T/T 30% as deposit, and 70% before delivery. We can accept PayPal and West Union for sample order as well.
Q:5.When will you ship my order?
Ordinary, once we get confirmation for payment,we will ship order within 1-2 days.
Q:6. How do you ship the goods and how long does it take arrive?
For sample order, usually we schedule shipment by DHL, Fedex, UPS or TNT.For bulk order, usually we schedule shipment by air, by sea or by train, and client appointed forwarder and shipment is accepted.
Q:7. Do you test all your goods before delivery?
A: Yes, we have 100% test before deliver
Q:8.How is your after-sale service?
For after-selling service, we will offer free technical training, 24/7 online technical support, and product return for fix service.
Q:9.How about warranty?
Three years warranty.
