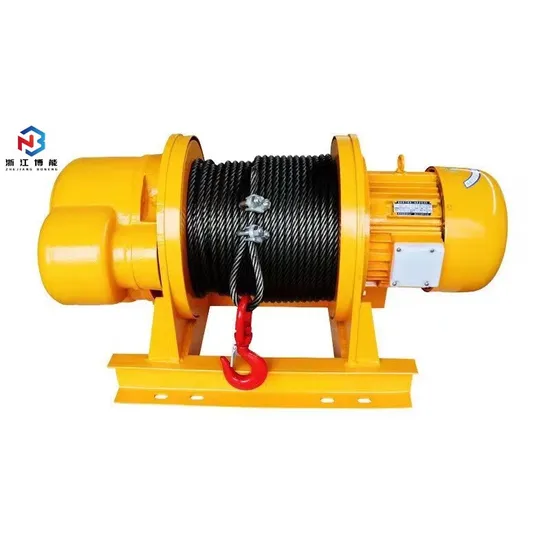

Hot Goods CD1 Wire Rope Marine Electric Slotted Winch

Product Description

Product Description
Winch is a equipment which use wire rope or chain which is install in the drum to lifting up the cargos from the ground. The winch lifting direction can be vertical, horizontal, and oblique pulling.
Superfast hoisting speeds. Super-high lifts. Increased factors of safety. Extremely arduous environments. Additional safety and operating equipment. Special hoist constructions.
Detailed Photos

Product Parameters

Product model	1T		2T		3T		5T
How to use	Single rope	Double rope	Single rope	Double rope	Single rope	Double rope	Single rope	Double rope
Rated Voltage (V)	380		380		380		380
Power(KW)	1.5		3.0		4.5		7.5
Rated Lifting (kg)	500	1000	1000	2000	1500	3000	2500	5000
Lifting speed (mmin)	16	8	16	8	16	8	16	8
Lifting height(m)	30-100		30-100		30-100		30-100
Rope Straight(mm)	8		11		13		15
Net Weight (kg)	80		130		160		260
Wire rope (#)	7.7#		11#		13#		15#
Length(mm)	800		830		950		1100
Channel length(mm)	530		600		650		750
Height (mm)	390		510		520		600
Width (mm)	320		430		460		530
Center Distance(mm)	260		275		290		320

Packaging & Shipping
Company Profile
Zhejiang Boneng Lifting Technology Co., Ltd., headquartered in Luqiao, Taizhou, is a
company specializing in the manufacturing of lifting equipment and the development of
lifting solutions.
Our company specializes in producing electric chain hoists, single-beam, double
beam and other series of cranes. It is a diversified enterprise integrating R&D design,
production and manufacturing, sales service, and domestic and foreign trade. Our
products are widely used in machinery, electric power, railway, water conservancy,
ports, docks, paper making and other industries.
The company has passed ISO9001 international quality system certification, boasts
strong technical force and complete professional equipment, and its products are
reliable. It holds a "Special Equipment Safety Manufacturing Approval Certificate"
issued by the state and has obtained the CE safety certification from the European
Union. The company not only pursues high-quality products but also focuses on
improving the abilities of every employee.The professional R & D team and sales team
enable us to provide customers with comprehensive technical consultations at any
time and handle various inquiries from domestic and international customers promptly
and efficiently.
Boneng's products are exported to overseas markets and have been well received
by customers both at home and abroad. To meet the requirements of customers, our
company has always adhered to the tenet of "Integrity as the Foundation; Striving for
Perfection; Focusing on Quality; Dedicated Service; Independent Innovation; Leading
the Market". We are constantly improving the enterprise's quality production and
management system to provide you with all-round services. We sincerely look forward
to your support and patronage.
