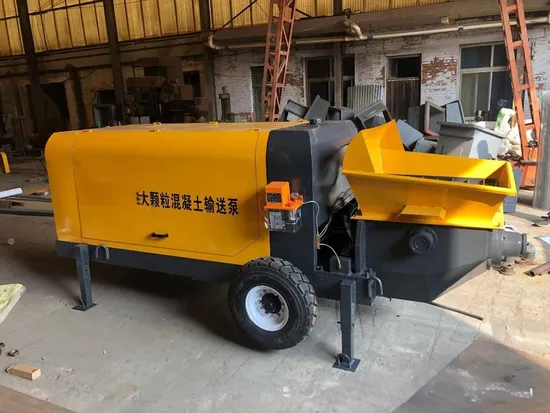

Hbt80 100 Fine Aggregate Concrete Conveying Pump Large Particle Concrete Pouring Pump

Product Description

Product Parameters

Fine aggregate concrete conveying pump
Project	Parameter	Project	Parameter
Pump model	hbt30	conveying height	30m
Power	diesel	Horizontal conveying distance	20m
pump size	2100*1300*1000mm	oil pump power	50L/S
Package size	2210*1410*1060mm	Theoretical conveying capacity	5-8m3/h
Mortar stone ratio	1:2:2	valve form	S-valve
Aggregate	Material diameter<30	Pipe diameter	Ф100mm
Cylinder diameter	Ф120/540	Usage	Mortar fine stone transportation
weight	800kg

Product Description

Applications:
1. Suitable for large-scale and efficient construction of fine aggregate concrete filling layer or mortar filling layer in underfloor heating engineering;
2. Suitable for the transportation of refractory and insulation materials in various engineering constructions;
3. Pressure grouting of various foundation piles; Tunnel over excavation and backfilling;
4. After installing spray accessories, it can be used as a spray pump.
Characteristics of conveying pump
1. The use of S-tube valve directional control can meet the transportation of fine aggregate concrete.
2. The eyeglass plate and cutting ring are made of high hardness and wear-resistant alloy material, which has a longer lifespan.
3. The export pressure is high, which can meet the transportation requirements of high-rise buildings and long-distance construction.
4. The hydraulic oil cooling adopts a forced air cooling system, which does not require a water source and is easy to use.
5. Equipped with anti pump function, it minimizes pipeline blockage to the greatest extent possible.
6. Equipped with an automatic centralized lubrication system to ensure the service life of rotating parts.
7. The electrical box is equipped with a wired remote control handle for easy operation.
