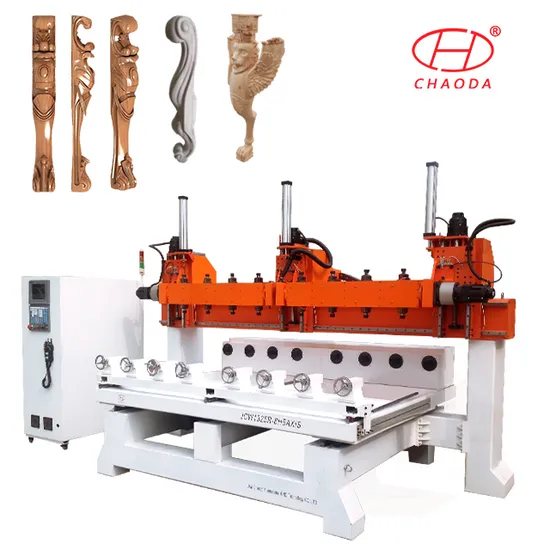

Hot Sale Wooden Chair Legs Making CNC Router Machine 5 Axis with 8 Rotary
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
JCW1325R-8H 5AXIS
Spindle Layout
Vertical
Spindle Number
8
Feed Mode
Mechanical
Controlling Mode
CNC
Customized
Customized
Condition
New
Color
Customized
After-sales Service
Online Services
Product Type
CNC Router Machine 5 Axis
Application
Wooden Chair Table Sofa Legs, Sculptures...
Working Size of Each Rotary Axis
1200mm Length, 300mm Diameter (Can Be Customized)
Spindle
3.5kw Air Cooling
Motor
Japan Yaskawa Servo Motor
Control System
5 Axis Syntec
Rotary Axis Quantity
8 (Option: 4, 6, 10 )
CNC Router Type
5 Axis (Option: 4 Axis)
Option
3D Scanner
Transport Package
Standard Packing
Specification
4.05m (L) * 2.25m (W) * 2.56m (H)
Trademark
CHAODA
Origin
Linyi
HS Code
8465990000
Production Capacity
100sets/Month
Product Description
Hot Sale Wooden Chair Legs Making CNC Router Machine 5 Axis With 8 RotaryThis item is very suitable for furniture bulk production, multi heads can work at the same time,many times increasing efficiency. Table movement, long time use no distortion, the more precise positioning accuracy. Each spindle can hold two tools, one tool for rough machining, one tool for finish machining ,which is equivalent to Auto Tool Changer. Simultaneous 5 axis Syntec control system, can make more complex 3d jobs. With a removable table, when you process plane material, just put the table on; when you process column /cylinder, just take off the table. Well compatibility in software: all kind of 3D carving softwares. We can make Multi heads machine with any working size according to customers' specific requirements.
| Model No. | JCW1325R-8H 5AXIS |
| Machine structure | Heavy duty steel structure |
| Table | Removable; T-slot with clamps |
| Rotary working size | 300mm diameter,1200mm length * 8 PCS |
| Flat working size | 300mm width,1200mm length * 8 PCS |
| Spindle power | 3.5kw double head air cooled spindle |
| Max moving speed | 20m/min |
| Max working speed | 15m/min |
| Resolution | 0.001mm |
| Control system | 5 axis Syntec |
| Motor | Japan YASKAWA Servo motor and driver |
| Inverter | Taiwan Delta |
| Max Burden weight | 1500kg |
| Oil system | Automatic |
| Voltage | AC380V,3 phase,50Hz |
This machine is very suitable for furniture bulk production, like sofa legs, table legs, chair legs, bed legs, bed head, stair
handrails, prop guns, wooden column cylinders... it also can make 3d small statues, figures, sculptures, 360 degree human body, Buddhist statues… etc.
1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
