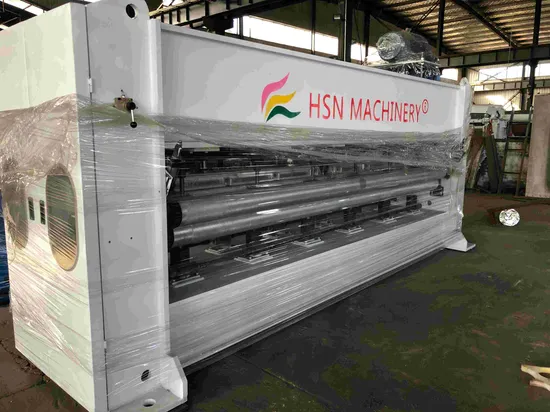

Needle Punching Machine
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
HSN3600
Customized
Customized
Condition
New
Transport Package
Nude Packing
Specification
3.6m
Trademark
HSN
Origin
China
HS Code
8449001090
Production Capacity
100sets/Month
Product Description
Production Line for Non woven FeltMiddle Speed Needle Punching Machine
| Sr. No | MODEL | HSN3600 | HSN3800 | HSN5200 | |
| 1 | WEIGHT | 9500 kgs | 10000 kgs | 13000 kgs | |
| 2 | POWER | 20 kw | 20 kw | 23 kw | |
| 3 | PRODUCT DENSITY | 50gsm-850gsm (depend on the raw material type also product requirements and no of units) | |||
| 4 | AVERAGE OUTPUT | 350 kg/hour (according to the 500gsm cloth speed of 4.5 meters per minute, the output is 0.5 x 4.5 x 2.6 x 60) | |||
| 5 | PROTECTION | Main motor overload protection | |||
| 6 | THE CONTROL MODE | Constant power & inverter control | |||
| 7 | WORKING WIDTH | 3600 mm | 3800 mm | 5200mm | |
| 8 | THE DENSITY OF NEEDLE | 6000 needles per meter | |||
| 9 | BEARING | TWB / or according to the customers' requirements | |||
| 10 | TYPE OF HOLES | Diameter 1.83mm/an inverted cone | |||
| 11 | INVERTER | SIEMENS | |||
| 12 | FABRIC SPEED | Recycled materials or man-made fiber materials or mixing materials | |||
| 13 | FABRIC SPEED | 0.5-11m/min (depend on the raw material type also product requirements) | |||
| 14 | TRIP OF NEEDLE | 60mm/40mm | |||
| 15 | TRANSFER ROLLER | Diameter: 168mm / chromium plating process / high quality 50# steel | |||
| 16 | THE MAIN SHAFT & OTHER WORK SHAFT | Diameter: 80mm / dynamic balance and strength strengthening heat treatment / high quality steel | |||
| 17 | PRINT COLOR | White and blue or as your customer requirements | |||
| 18 | THE CONTROL CABINET AND PANEL | Digital display instrument, and equipped with knob regulator, professional electric schematic diagram | |||
| 19 | NOTE | Direction: up or down first, the round-trip distance of the needle can be adaptive adjustment according to the thickness of the raw materials. | |||
| 20 | MOVEMENT | Up stroke / down stroke, / pre-needle | |||
