93/7 Excellent Anti-Yellowing Polyester Resins for Tgic Powder Coating

Product Description

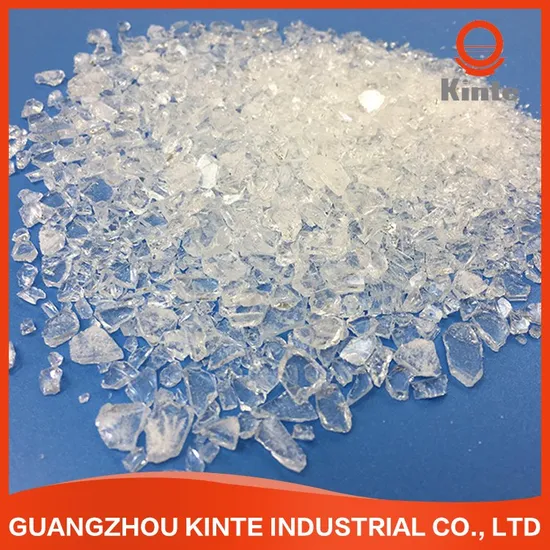

93/7 Excellent Anti-yellowing Polyester Resins for TGIC Powder Coating NH3306 is saturated carboxyl polyester resin for applications of polyester/TGIC powder coating system.
Basic Features Good leveling Excellent anti-yellowing Excellent storage stability Good weathering resistance Suitable for the powder coatings with deep or bright color.
Recommend Formulation:

NH3306	TGIC	Filler & pigment	Leveling agent	Benzoin	701
558	42	383	8	4	5

Specifications:

Appearance	white or light yellow transparent flakes
Color(50%DMF)	max:2
Acid Value (mgKOH/g)	31~36
Softening Point (ºC)	104~114
Glass Transition Temp. (ºC)	~69
Melting Viscosity (200ºC, cone/plate, mPa·s)	9000±800
Reactivity at 180ºC (s, 7% TGIC)	170±30
Curing Requirement	200ºC×10min
Packaging	PE Bags, Net Weight 25kg ± 0.1kg / bag

Specifications II:

Extrusion Condition	Two-screw Extruder
	Zone I: 90~110ºC	Zone II: 110~120ºC
	Speed of Revolution	500~1200rpm
	Fineness of Powder	<100μm
Application Condition	Electrostatic Spraying With	40~70KV
	Coating Film Thickness	50~100μm
	Degreased Cold-rolled Steel	0.5mm
Film Properties	Gel Time (180ºC, sec)	200~300
	Horizontal Flow (180ºC, mm)	22~26
	Gloss (60°)	≥85%
	Bending (φ1mm)	Pass
	Adhesive (1mm, grade)	0
	Pencil Hardness	≥1H
	Impact (50cm)	Pass

More Code:

Code	Ratio	Cure Cycle	AV (mgKOH/g)	Viscosity (mPa.s/200ºC)	Tg (ºC)	Reactivity (s/180ºC)	Properties
NH3305	93/7	200ºC*10min	31~35	4600~6200	~65	160-280	General purpose resin. Cost-effective.
NH3306	93/7	200ºC*10min	31~36	8200~9800	~69	140-200	Excellent storage stability, good heat resistance and anti-yellowing. Suitable for sand texture and wrinkle texture powder coatings.
NH3307	93/7	200ºC*10minn	30~35	4000~6000	~67	200-260	General purpose resin for aluminum profile powder coatings with high Tg, outstanding flow and excellent outdoor durability.
NH3308	93/7	200ºC*10min	30~36	4500~6000	~65	200-300	General purpose resin for low gloss powder coatings with good outdoor durability and mechanical properties.
NH3309	93/7	200ºC*15min	30~35	2900~4100	~60	300-400	Excellent flow, good chemical resistance.
NH3309C	93/7	200ºC*15min	29~35	3500~4200	~60	380-450	Excellent flow, enhanced outdoor durability.

Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
