Hot Sales Steel Bar Straightening Machine with Ygt4-14 Jaguar Type1

Product Description

Product Description

Type	4-14 Jaguar Type1	YGT4-14 (A)	YGT4-14 (Double)	YGT4-14 King of one thousand tons
Scope of straightening steel bar	4-14mm	4-14mm	4-14mm	4-14mm
Wire drawing speed	50m/min	50m/min	50m/min	50m/min
Cut off the motor power	9kw	9kw	9kw	9kw
Cutting length error	±0.5-1cm	±0.5-1cm	±0.5-1cm	±0.5-1cm
Wire straightness	±2mm/m	±2mm/m	±2mm/m	±2mm/m
Length of material	800-900(can be lengthened)	800-900(can be lengthened)	800-900(can be lengthened)	800-900(can be lengthened)
Weight	350kg	400kg	1000kg	1200kg
size	1150*950*830mm	2300*870*1300mm	2840*770*900mm	3300*650*1300mm
Input voltage	Three phase 380VAC 415VAC or customized
Color	Red, yellow,gray,blue or customized

Our Advantages 1.Small error, high straightening, high speed.
2.The different specifications of the construction of round steel, screwed steel can be straightened and cut.
3.With microcomputer control, It can be automatically adjusted and cut off, and it has stored memory, and can input the length and quantity at the same time.
4. High degree of automation, fast traction, continuous work, automatic counting stop device, good safety performance.
5.Easy to operate, easy to cut, easy to drop, high production efficiency, low failure rate, convenient maintenance.

Other Types of Products
Changge Kowloon Machinery Manufacturing is a collection of scientific research, development,
manufacturing, sales and service as one of professional construction machinery manufacturers.
Established in 2013, factory area 28000 square meters, with 57 employees, has CE and ISO 9001
Certifications. We always produce our products to higher standards than the industry and are known
for the quality of our products.
The main products are: Rebar cutting machine, Rebar bending machine, Plate compactor, Tamping rammer, Polishing machine, Road roller, Forklift and other Mechanical equipment. Products are exported to Southeast
Asia, Central Asia, Eastern Europe, Africa, South America, Russia and other dozens of countries. Until now,
nearly 120, 000 sets of our machines are servicing the overseas construction sites now.
We not only provide lightweight construction machinery, but also help you solve construction problems, provide
you and your company with great service, unbeatable price and real value!
We invite you to become a member of our growing family of customers, warmly welcome your coming!
FAQ Q:What's the usually delivery terms?
A:FOB, CNF, CIF, Exworks will be ok.
Q:What's the MOQ?
A:1 Sets.1 set for sample is OK, but there would be extra port and delivery charges.
Q:What's the payment terms?
A:We accept Cash, T/T, L/C.
Q:What's your delivery port?
A:Usually Qingdao Port, Tianjin, Shanghai or other port of China.

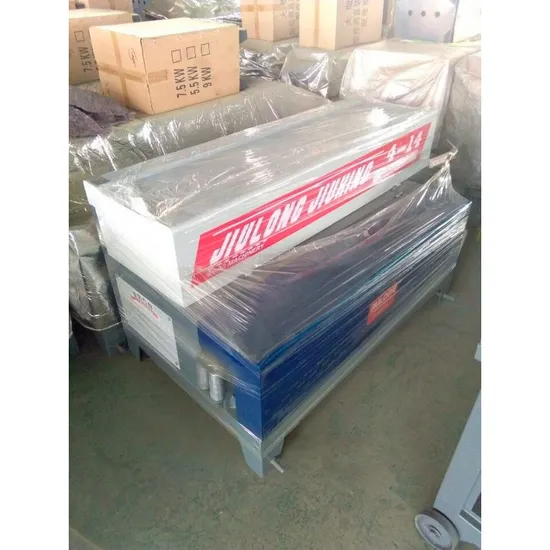

Q:What's your packing?
A:Iron frame and Plywood cases or carton.
Q:Can I change the motor to my local voltage and frequency,is there any extra charge?
A:Yes, we can supply motor with frequency and voltage according to local standard. Such as
220V/380V/410V/415V/440, and 50HZ/60HZ 3 Phases without extra charge.
Q:Can we place OEM orders?
A:Yes, OEM orders are acceptable, We can manufacture machines according to your
requirements:such as design, logo, color, material or brand information.
Q:Does machines have warranty period?
A:Yes, our machine with one year warranty period for main parts, quick parts are excluded.
Q:Does machine have certificates?
A:Yes, Our machine had qualified CE and ISO9001 Certificates.
Q:What about the shipment?
A:Shipped in 7days after payment.
Q: What about the aftersale service?
A: 24 hours online technical support.
Q:What about the quality?
A:We have got the CE certification. And we are the profetional construction
manufacturer, we can guarantee the quality.

For more information about our products packaging,shipping and discounts,Please contact me.
