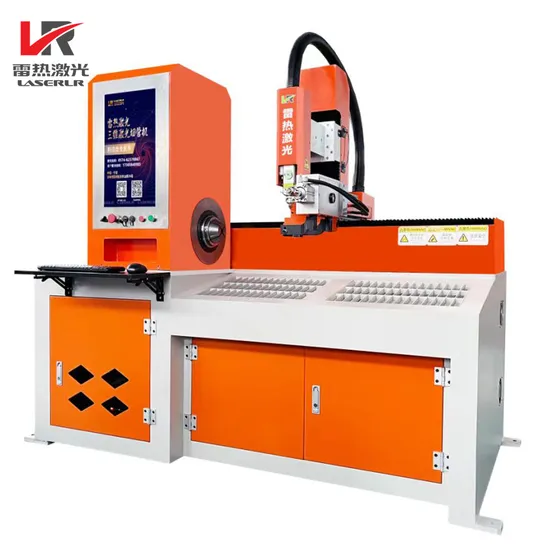

High Precision Semi-Automatic Three-Dimensional CNC 3D Fiber Laser Cutter Pipe Cutting Machine for Metal Quare /Oval/Round Tube

Product Description

Product Description

Cut pipe length	Infinite length
Cut pipe diameter	φ8-φ80
Tail materia	<50MM
X-axis stroke	±50MM
Y-axis stroke	0-850MM
Z-axis stroke	0-100MM
Cutting accuracy	±0.05MM
Position accuracy	±0.2MM
Drawing accuracy	±0.1MM(Single time)
Slit width	±0.15MM(Left and right)
Repeated positioning accuracy	±0.03MM
Maximum acceleration	1.5G
Drawing method	Pneumatic clamping,servo pulling materia
Contro system	Jiaqiang/Weihong
Display Size (resolution)	21"(1920*1080)21 inch(1920*1080)
Rated voltage	380V
Rated power	4500W(Excluding laser,water cooler)
Type of pipe cutting	Round tube,square tube,oval tube
Pipe cutting material	Stainless steel,carbon steel,aluminum,copper,iron

Cutting Samples
Cutting Samples
A.Multifunction cutting for round, square, rectangle and oval pipes!
B.lt can straight cut, angle cut, make holes, etc.
C.Smooth and burr-free cutting.
D. Cutting loss 0.1mm/cut only.
E. Excellent cutting accuracy ±0.05mm. Widely Used
Scope of application: plumbing and sanitary ware, new energy industry, pipe processing, bicycle manufacturing, automobile manufacturing, aerospace, kitchenware industry, medical equipment, furniture industry, agricultural machinery. Welcome to consult and customize!
Related Products

Company Profile
Ningbo Heat Laser Technology Youyang Company was founded in 2018. It is located in Ningbo City, Zhejiang Province, an important port city on the southeast coast of China and the economic center of the Yangtze River Delta. It is a professional metallurgical company integrating design, manufacturing and sales. Innovative enterprise of pipe cutting equipment.
Since its establishment, Leire Laser has always focused on the field of metal pipe processing, adhering to the corporate mission of "becoming a global brand supplier of pipe cutting equipment! Changing the future with intelligent manufacturing", and winning market recognition with products and technology!
FAQ
Q1:How do install the machine and what services can you provide?
A1:We have prepared user manual, installation preparation guide and installation video. These documents will besent to you in advance and you can prepare according to them. After the machine arrives. we will set up an onlinegroup where our engineers will be available to guide you.
Q2:What is the delivery time for the machine?
A2:Fast delivery. The delivery time for most machine models is usually within 15-30 working days
Q3:How do you provide after-sales service?
A3:You need to confirm with our engineers in the group now what the problem is, and our engineers will check if theycan solve it by remote technical guidance.
Q4:Are the displayed prices final offers?A4: No, It is a price range. The final quotation depends on the buyer's requirements
Q5: I don't know which one is suitable for me?
A:Please tell me your
1) Your materials
2)Max size of your material
3) Max cut thickness
4) Popular cut thickness
