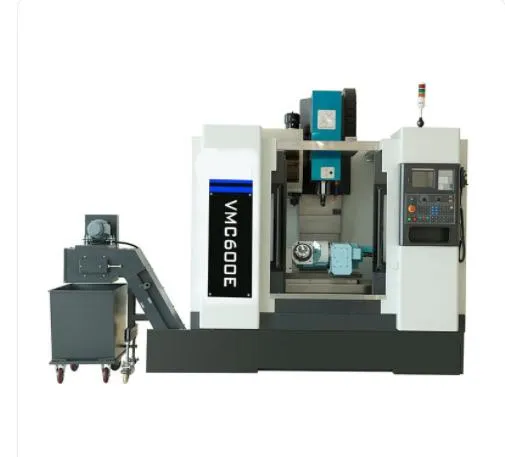

Vmc600e Vertical Machining Center CNC Machine Vertical Milling
| US$30,000.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VMC600E
Type
Tool Milling Machine
Object
Hardware
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Table
800X380mm
Travel
600/350/450
Spindle
Bt40
F&M
20/20/20
Transport Package
Packed
Origin
China
HS Code
8459619000
Production Capacity
50/M
Product Description
| Unit | VMC600E | ||
| Table | Table size | mm | 800 x 380 |
| T slot(width x nos. x distance) | mm | 14 x 3 x 110 | |
| Max. load | Kg | 350 | |
| Travel | X/Y/Z Travel | mm | 600/350/450 |
| Spindle nose to table | mm | 50-500 | |
| Spindle center to column | mm | 450 | |
| Guideway type | LM: XYZ | ||
| Spindle | Spindle type | BT40 | |
| Main servo motor | KW | 3.7/5.5, *5.5/7.5 | |
| Spindle speed | rpm | 6000, *8000, *12000 | |
| Feed & Magazine | X/Y/Z axis rapid traverse | m/min | 20/20/20 |
| ATC capacity/type | No. /type | 16/Drum, *20/Arm | |
| Max. weight of tool | Kg | 8 | |
| Dimension & Weight | Power capacity | kVA | 15 |
| Dimension | mm | 2400 x 2000 x 2320 | |
| Weight (about) | Kg | 2500 | |
| Note: *means optional, LM means linear motion guide way. | |||
Product Description
VERTICAL MACHINING CENTER SERIES
★: Precision linear guideways provide high speed rapids;
★: Heavy-duty high quality castings provide a solid structure and rigid foundation;
★: The casting bed and Y-shaped column design provide solid support to ensure ultimate dynamic accuracy;
★: Direct drive spindle efficiently seperates the heat generated from the motor, which reduces deformation;
★: High-performance magazine achieves quick tool change to minimize non-cutting time;
★: Full enclosed guard cover and advanced sheet metal design;
★: Fanuc 0i MF Plus/Siemens 828D/Mitsubishi M80A control systems;
TECHNICAL PARAMETERS
| Item | Specifications | Unit | VMC600E |
| Table | Table size | mm | 800x380 |
| T slot | N/A | 14x3x110 | |
| Max.load | Kg | 350 | |
| Travel | X/Y/Z travel | mm | 600/350/450 |
| Spindle nose to table | mm | 50-500 | |
| Spindle center to column | mm | 450 | |
| Guideway type | N/A | LM: X/Y/Z | |
| Spindle | Spindle type | N/A | BT40 |
| Main servo motor | kW | 5.5/7.5 | |
| Spindle speed | rpm | 8000, *12000 | |
| Feed&Magazine | X/Y/Z axis rapid traverse | m/min | 20/20/20 |
| Cutting feed rate on X/Y/Z | mm/min | 1-10000 | |
| ATC capacity/type | N/A | 24/Arm | |
| Max.weight of tool | Kg | 8 | |
| Accuracy | Positioning | mm | 0.008 |
| Repeatability | mm | 0.005 | |
| Dimension&weight | Power capacity | kVA | 15 |
| Dimension(LxWxH) | mm | 2400x2000x2320 | |
| Weight(about) | Kg | 2500 |
