Custom Made Paper Edge Protector Machine with Online Punching Device

Product Description

Model	SANPPL-120G
V protector size (mm)	25-120 (can be symmetrical and asymmetrical)
Thickness (mm)	2.5-10
Applicable inner paper	360-600g/m2 bobbin fiber paper, fluting paper or corrugating medium paper
Applicable surface paper	175-250gsm kraft paper
Core diameter of paper roll	3"(76mm) ( 4"or other size must be confirmed when making order)
Max. quantity of Layer	13
Max. speed	50m/min for length not smaller than 800mm.

Paper protector / edge protector / paper edge / edge board / corner board / angle board / edge board protectors / edge protection board are the right solution to prevent your products from damage during handling, storage and transportation.

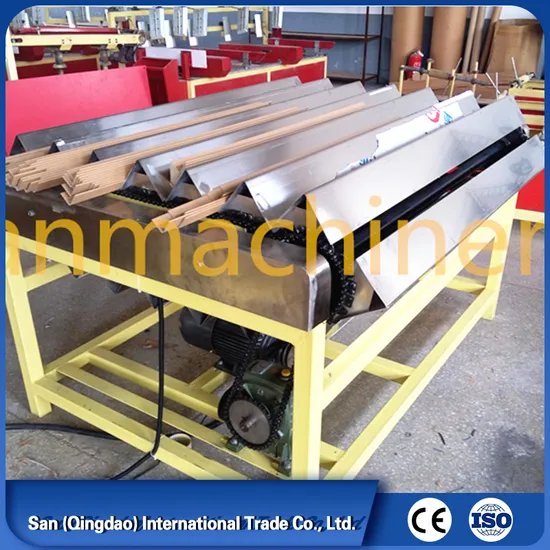

SANPPL-120G is one paper edge protector machine with speed of 50m/min. This paper corner board machinery is only for L shaped paper edge protector production. Through changing tools, it can produce U profile protector and flat board.
San (Qingdao) Machinery Co., Ltd was established in March 2005, based on the tenets of providing professional services wholeheartedly, supplying trustworthy and high efficiency products, helping employees build strong selves and live a prosperous life, and contributing to the development and progress of human society. In conformity with the management philosophy of being responsible, leading and realistic, "San" people are summing up experience and innovating constantly in technology, production, sales and service, and sparing no effort to be a leading integrated service provider for paper machines and paper converting machines in China.
