Hxm 1300 Servo Energy Saving Plastic Injection Molding Machine
| US$18,000.00-565,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HXM1300
Structure
Horizontal
Plastic Type
PS, ABS, PP, PE, HDPE, PA, EVA
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Energy Saving
Servo Energy Saving
After Sales Service
Engineers Avaiable to Service machinery Oversea
Voltage
380V/50Hz, Accocrding to Countries
Showroom Located
Malaysia, Russia, Turkey, Uzbekistan, Egypt
Condition
New
Injection Weight
8685g PS
Space Between Tie Bar
1320 X 1280mm
Machine Weight
65ton
Transport Package
Safety Package
Specification
13.55x2.76x3.9
Trademark
HIGHSUN
Origin
China
HS Code
8477101090
Production Capacity
7000 Sets / Year
Product Description

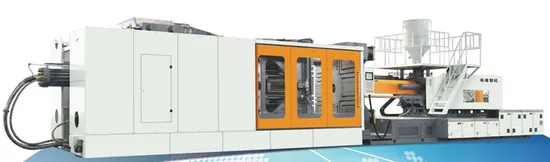

1. Picture| MODEL:HXM1300 | |||||
| TECHNICAL PARAMETER TABLE | A | B | C | ||
| INJECTION UNIT | SCREW DIAMETER | mm | 120 | 130 | 140 |
| SCREW L/D RATIO | L/D | 24 | 22.2 | 20.6 | |
| INJECTION CAPACITY IN THEORY | cm3 | 7012 | 8229 | 9544 | |
| INJECTION WEIGHT(PS) | g | 6380 | 7488 | 8685 | |
| oz | 225.0 | 264.1 | 306.3 | ||
| INJECTION PRESSURE | MPa | 172 | 146 | 126 | |
| INJECTION RATE | g/s | 926 | 1087 | 1260 | |
| PLASTICIZING CAPACITY | g/s | 128 | 145 | 175 | |
| SCREW SPEED | rpm | 95 | |||
| CLAMPING UNIT | CLAMPING FORCE | KN | 13000 | ||
| MOVING MOULD-PLATE STROKE | mm | 1400 | |||
| MAX. MOULD HEIGHT | mm | 1300 | |||
| MIN. MOULD HEIGHT | mm | 550 | |||
| SPACE BETWEEN TIE-BARS (W×H) | mm | 1320x1280 | |||
| HYDRAULIC EJECTOR FORCE | mm | 260 | |||
| HYDRAULIC EJECTOR STROKE | KN | 400 | |||
| EJECTOR NUMBER | n | 21 | |||
| OTHERS | PUMP PRESSURE | MPa | 16 | ||
| MOTOR /DRIVING POWER | KW | 37x3 | |||
| HEATING CAPACITY | KW | 87.95 | |||
| MACHINE DIMENSION (L×W×H) | m | 13.55x2.76x3.9 | |||
| MACHINE WEIGHT | t | 65 | |||
| OIL TANK CAPACITY | L | 1672 | |||
2.Application
3.Processing,assembling production line
5.Loading containers
6. Customer case
Client in China produce shoe for many famous companies
7.Client in Malaysia
