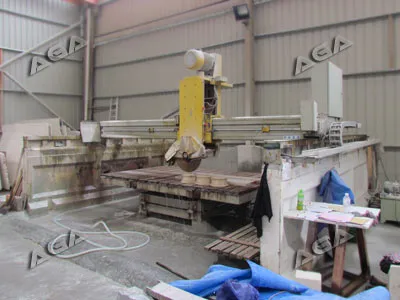

Bridge Saw Machine for Granite Marble Slab (HQ400/600/700)

Product Description

Bridge Saw Machine Info:
Bridge saw cutting machine for marble granite stones.
It is applicable on cutting and trimming slab, countertop, vanity, steps, etc.
The bridge saw works by industiral computer with programs for automatic cut, and also capable of manual operation. All the operations are achieved from the touch screen panel.
It is able to cut 3.2 m length and 2 m width with laser guide sensor for cutting guide.
The table tilts up to 85 for easy load of big slabs and also turns 90/360 degree to change the cutting direction.
Bridge Saw Machine Specification:

Model	400	600	700
Blade Size	Φ300-Φ450 mm	Φ300-Φ600 mm	Φ300 - Φ700 mm
Blade Tilting	N/A	N/A	0°- 45°
Table Size (L×W)	3200×2000 mm 126"×79"
Table Rotation	0°- 90° / 360°		0°- 360°
Table Tilt	0°- 85°
Max. Cut size	3200×2000 mm 126"×79"
Spindle Motor	15 Kw 20HP	15 Kw 20HP	18.5 Kw 25HP
Size (L×W×H)	6×4.8×2.9 m	6×4.8×3 m	6×5.7×3.5 m
Weight	6,300 Kg	6,500 Kg	7,500 Kg

Bridge Saw Machine Details:
Similar products as below show:

Model	XZQQ625A	HD600D
Pictures
Blade size	400-625mm 16"-25"	400-600 mm 16"-24"
Cut length	3200mm 126"	3200 mm 126"
Cut width	2000mm 78"	2000 mm 78"
Cut thick	170mm 7"	180 mm 7"
Spindle motor	15kW 20HP	15 Kw 20 HP
Size (L×W×H)	6×3×2.6 m	5.9×3.5×2.6 m

Guarantee & after sale service:
1.Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2.when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3.24-hour technical support Internet or by Telephone, free instructions and Problem solving.
Company Introduction:
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable service. The products include bridge saw,block cutter,polishing machine as well as equipments for other construction stones.The equipments have been successfully exported to world stone market in U.S.A.,Canada, Europe, Mid East, Egypt, India,etc.
AGA understands that machinery creates value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers in their pursuit of a true competitive advantage. our philosophy is all about professional entrepreneurship and perfectly serving our clients and the mission is to help customers because by choosing us you are giving us a chance to make your machine more productive that also make your products unrivaled in the competitive market and we are happy to do that professionally and passionately.
Other product:
Stone cutting machine, multi blades block cutter, automatic bridge cutting machine, bridge saw, edge cutting machine, edge polishing machine, profile cutting machine, arm polisher machine, splitting machine, pressing machine, stone crusher.
