DC Link Film Capacitor for Wind and Solar Power Plants

Product Description

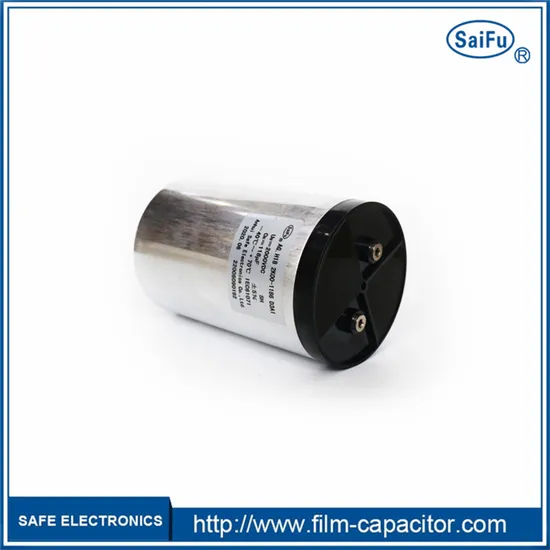

DC Link Film Capacitor For Wind And Solar Power Plants
Dc-link capacitor is made of metalized film winding, the film is made of cylindrical winding by full
automatic equipment, the application of non-inductive winding technology,the core is connected
by thin copper sheet technology, making the capacitor production inductance is small, over-current
and over-voltage capacity is large.
1. Production Process Flow Chart
2. Features
(1) Used in DC-Link filter circuits, can replace electrolytic capacitor (2) Low ESR, high ripple current handling capabilities
(3) Low inductance
(4) Self-healing property
(5) Long lifetime
(6) Aluminum case, resin sealing
3. Applications
(1) Used in wind power, solar power or other industrial frequency converters (2) Used in DC support filter circuit
4. Technical Specification

590	1.3	55	3.1	137	40	Φ86x 145	A,B,C,D	1.0	AG.H14 0K70-5906D86
730	1.1	55	3.9	171	50	Φ86x 181	A,B,C,D	1.2	AG.H18 0K70-7306D86
1030	1.0	55	5.1	252	70	Φ86x 225	A,B,C,D	1.5	AG.H22 0K70-1037D86
Cn (μF)	Rs (mΩ)	Imax (A)	Î (KA)	WN (Ws)	Ls (nH)	D x L (mm)	Drawing	m (Kg)	Order No.
Un 900VDC Us 1350v Ur 200V U t-t 1350 VDC Ut-c 3000 VAC
350	2.1	40	2.0	148	50	Φ76 x 130	A,B,C,D	0.7	AG.H13 0K90-3506D76
410	1.2	40	2.3	178	50	Φ76 x 135	A,B,C,D	0.8	AG.H13 0K90-4106D76
470	1.0	55	2.5	191	40	Φ86x 135	A,B,C,D	0.9	AG.H13 0K90-4706D86
540	1.4	40	3.0	229	60	Φ76 x 181	A,B,C,D	1.0	AG.H18 0K90-5406D76
560	1.3	55	3.1	238	40	Φ86x 145	A,B,C,D	1.0	AG.H14 0K90-5606D86
700	1.1	55	3.9	297	50	Φ86x 181	A,B,C,D	1.2	AG.H18 0K90-7006D86
1020	1.0	60	5.1	413	70	Φ86x 225	A,B,C,D	1.5	AG.H22 0K90-1027D86
Un 1100VDC Us 1650v Ur 250V U t-t 1650 VDC Ut-c 3000 VAC
240	3.3	50	1.5	170	50	Φ76 x 130	A,B,C,D	0.7	AG.H13 1K10-2406D76
300	2.6	50	1.9	216	60	Φ76 x 145	A,B,C,D	0.8	AG.H14 1K10-3006D76
320	2.4	65	2.0	232	40	Φ86x 130	A,B,C,D	0.9	AG.H13 1K10-3206D86
380	2.2	50	2.3	270	60	Φ76 x 181	A,B,C,D	1.0	AG.H18 1K10-3806D76
400	2.0	65	4.2	242	50	Φ86x 156	A,B,C,D	1.2	AG.H15 1K10-4006D86
500	1.5	70	6.0	303	60	Φ86x 186	A,B,C,D	1.3	AG.H18 1K10-5006D86
600	1.6	60	4.2	363	70	Φ86x 225	A,B,C,D	1.5	AG.H22 1K10-6006D86
1200	0.9	100	7.8	726	80	Φ120x 230	A,B,C,D	2.5	AG.H23 1K10-1207D120
Un 1200VDC Us 1800v Ur 250V U t-t 1800 VDC Ut-c 3000 VAC
320	2.5	62	2.88	230	65	Φ76x 155	A,B,C,D	1.1	AG.H15 1K20-3206D76
420	1.8	65	2.97	238	50	Φ86x 175	A,B,C,D	1.2	AG.H17 1K20-4206D86
470	1.7	65	4.00	338	60	Φ86x 195	A,B,C,D	1.5	AG.H19 1K20-4706D86
Un 1300VDC Us 1950v Ur 300V U t-t 1950 VDC Ut-c 3000 VAC
160	2.1	40	1.8	138	50	Φ76 x 130	A,B,C,D	0.7	AG.H13 1K30-1606D76
200	2.2	40	2.0	168	60	Φ76 x 145	A,B,C,D	0.8	AG.H14 1K30-2006D76
220	2.0	50	2.2	185	40	Φ86x 130	A,B,C,D	0.9	AG.H13 1K30-2206D86
250	2.1	40	2.4	208	60	Φ76 x 181	A,B,C,D	1.0	AG.H18 1K30-2506D76
270	1.4	50	2.6	227	50	Φ86x 145	A,B,C,D	1.0	AG.H14 1K30-2706D86
330	1.6	50	3.0	281	60	Φ86x 181	A,B,C,D	1.2	AG.H18 1K30-3306D86
460	2.1	60	4.1	390	70	Φ86x 225	A,B,C,D	1.5	AG.H22 1K30-4606D86
Cn (μF)	Rs (mΩ)	Imax (A)	Î (KA)	WN (Ws)	Ls (nH)	D x L (mm)	Drawing	m (Kg)	Order No.
Un 1500VDC Us 2250v Ur 300V U t-t 2250 VDC Ut-c 3000 VAC
110	2.1	35	1.6	133	50	Φ76 x 130	A,B,C,D	0.7	AG.H13 1K50-1106D76
140	2.2	35	2.0	159	60	Φ76 x 145	A,B,C,D	0.8	AG.H14 1K50-1406D76
150	1.8	45	2.2	174	40	Φ86x 130	A,B,C,D	0.9	AG.H13 1K50-1506D86
190	1.7	35	2.8	217	60	Φ76 x 181	A,B,C,D	1.0	AG.H18 1K50-1906D76
250	1.3	45	3.5	278	50	Φ86x 181	A,B,C,D	1.2	AG.H18 1K50-2506D86
345	1.9	60	5.0	389	70	Φ86x 225	A,B,C,D	1.5	AG.H22 1K50-3456D86
Un 1800VDC Us 2700v Ur 400V U t-t 2700 VDC Ut-c 3000 VAC
120	1.6	50	1.8	198	50	Φ86 x 130	A,B,C,D	0.9	AG.H13 1K80-1206D86
140	2.0	40	2.0	226	60	Φ76 x 181	A,B,C,D	0.9	AG.H18 1K80-1406D76
185	1.4	50	2.5	299	60	Φ86 x 181	A,B,C,D	1.2	AG.H18 1K80-1856D86
260	2.4	60	3.0	424	70	Φ86 x 225	A,B,C,D	1.5	AG.H22 1K80-2606D86
Un 2200VDC Us 3200v Ur 500V U t-t 3200 VDC Ut-c 4000 VAC
75	1.4	50	2.2	222	50	Φ86 x 130	A,B,C,D	0.9	AG.H13 2K20-7505D86
90	2.0	40	3.2	260	60	Φ76 x 181	A,B,C,D	1.0	AG.H18 2K20-9005D76
120	1.2	50	3.5	346	60	Φ86 x 181	A,B,C,D	1.2	AG.H18 2K20-1206D86
165	1.9	60	4.5	477	70	Φ86 x 225	A,B,C,D	1.5	AG.H22 2K20-1656D86
Un 2600VDC Us 4000v Ur 700V U t-t 4000 VDC Ut-c 4500 VAC
50	1.4	50	1.6	181	50	Φ86 x 130	A,B,C,D	0.9	AG.H13 2K60-5005D86
65	1.5	40	2.0	218	60	Φ76 x 181	A,B,C,D	1.0	AG.H18 2K60-6505D76
80	1.2	50	2.5	283	60	Φ86 x 181	A,B,C,D	1.2	AG.H18 2K60-8005D86
115	2.0	60	3.3	392	70	Φ86 x 225	A,B,C,D	1.5	AG.H22 2K60-1156D86

Note: Other specifications and size outside table are negotiable
5. Production Equipments
6. Product Certifications
7. R & D Patents
8. Honors Our Company Has Received
9. Geographical Advantage
Thirteen minutes to reach "G50 ShangHai-ChongQing Expressway"
10. FAQ
Q1. Are you a manufacturer? Yes, we are professional capacitor manufacturer and have specialized in this industry for decades. Q2. What is the specification of DC-Link capacitor? Capacity: 1μF-5000μF Voltage: 500VDC-4000VDC Q3. How do you ensure your quality? Our products have obtained CQC, TUV, UL, CE and other relevant certifications, in compliance with
RoHS and REACH directive requirements. Q4. Can you provide samples? Yes, we can provide samples for testing. Q5. Can your product be customized? Yes, we can customize products according to customer's requirement.
