High Quality Semi Auto Screen Printing Machine for Satellite Dish
| US$11,000.00-12,800.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
HX-4060T
Type
Vertical Screen Printing Machine
Style
Screen-process Printing Press
Structure
Single-revolution printing press
Color & Page
Single-Colour Printing Press
Application
Packaging Printing
Print Interface
No Need
System Supported
No Need
Print Size
400*600mm
Machine Speed
800 ~ 1000 Cycles/Hr
Vertical Stroke
200mm
Transverse Stroke
700mm
Worktable Size
500*700mm
Vertical Driven
Pneumatic Electronic
Transverse Driven
Electronic
Power Supply
AC 110/220V
Air Supply
5 ~ 7 Bar
Machine Size
1100*900*1800mm
Machine Weight
442kg
Transport Package
Plywood
Specification
400*600mm
Trademark
HX
Origin
China
HS Code
8443192290
Production Capacity
100 Sets/Year
Product Description

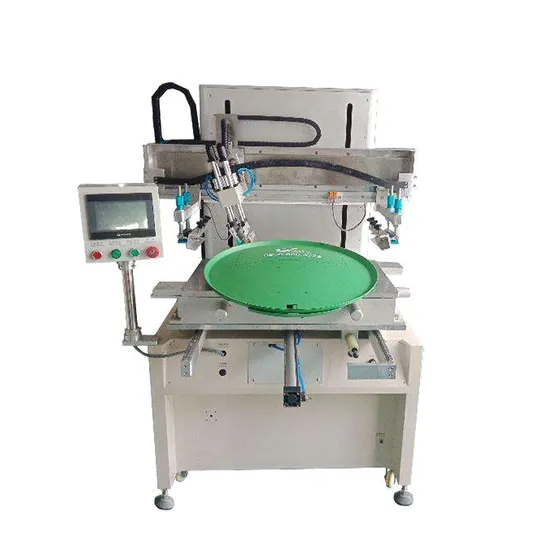

high quality semi auto screen printing machine for satellite dishMachine summary:
It is a electric flat screen printing machine with high precision, adopting Japan and TAIWAN pneumatic parts, controlling left / right, up / down by electric with high precision, stable moving, small shaking, correct over-printing. The printing precision can be up to ± 0.02MM, printing speed can be up to 800~1000pcs/hr. It is special designed for printing satellite antenna.
Technical paremeter:
1. printing area: 400*600m;
2. printing speed: 800 - 1000pcs/hr;
3. power: 110/220V 50-60HZ 200w;
4. air pressure: 5~7bar;
5. action mode option: fully automatic semi-automatic manual;
6. scrapper pressure controller: by pressure regulating Valve;
7. start up method: panel foot switches;
8. vertical driving style: electronic;
9. transverse driving style: Electronic, 3 phase reduction gears;
10. vertical stroke: 200mm;
11. transverse stroke: 700mm;
12. Work table area: 500*700mm;
13. Max screen frame size: 600*900mm;
14. Max height of printed products: 50mm;
15. locating precision: < 0.02MM;
16. printing workstation: 1pc;
17. type of work-table: T-shot with cylinder driven front / back.
