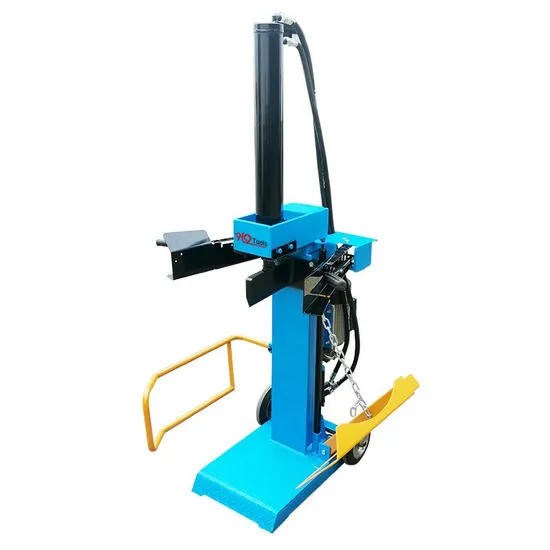

Hyv10t-600 10t Short Electric Wood Log Splitter Vertical Tractor Log Splitter Firewood Processor Convenient Wood Split
Basic Info.
Model NO.
HYV10T-600
Type
Log Splitter
Power Source
Electric
Certification
ISO9001, CE
Motor Power
3kw
Motor Voltage
230V/50Hz
Rotating Speed
2800rpm
Insulation Protection Class
IP54
Motor Working Mode
S6/40%
System Pressure
22.5MPa
Cylinder Diameter
70*T3.5
Piston Rod Diameter
30
Gear Pump Flow (Ml/R)
2.3
Maximum Splitting Force (Tons)
9.5
Split Length
600
Machine Weight (Kg)
122
Transport Package
Polywood Packing
Specification
90PCS/20GP
Trademark
Hystrong
Origin
Shanghai
Production Capacity
10000
Product Description
Product DescriptionHYstrong forestry machinery wood processor firewood processor 6 8 10 Ton Vertical Log Splitter
Product Parameters
| Product model | HYV6T-550 | HYV8T-550e | HYV8T-550 | HYV10T-600 | HYV10T-1050 |
| Motor power (P1) | 2.2KW | 3.0KW | 3.0KW | 3.0KW | 3.0KW |
| Motor voltage | 2.2KW | 230V/50HZ | 230V/50HZ | 230V,50HZ | 230V,50HZ/400V,50HZ |
| Rotating speed | 2800rpm | 2800rpm | 2800rpm | 2800rpm | 2800rpm |
| winding material | AL | AL | AL | AL | AL |
| Insulation protection class | IP54 | IP54 | IP54 | IP54 | IP54 |
| Motor working mode | S6/40% | S6/40% | S6/40% | S6/40% | S6/40% |
| System pressure | 22MPa | 22.5MPa | 22.5MPa | 22.5MPa | 22MPa |
| Cylinder diameter | Φ60*t3.0 | Φ70*t3.5 | Φ75*t4.0 | Φ70*t3.5 | Φ75*t4.0 |
| Piston rod diameter | Φ22 | Φ28 | Φ28 | Φ30 | Φ30 |
| Gear pump flow (ml/r) | 1.6 | 2.1 | 2.3 | 2.3 | 2.3 |
| Maximum splitting force (tons) | 5.5 | 7.2 | 7.5 | 9.5 | 9.5 |
| split length | 550 | 550 | 550 | 600 | 1000 |
| split log diameter | 70-400 | 70-400 | 70-400 | 70-400 | 70-400 |
| Machine weight (KG) | 89±1.5 | 102±1.5 | 110±1.5 | 122±1.5 | 160±1.5 |
| Certification | CE/GS | CE/GS | CE/GS | CE/GS | CE/GS |
| Packing quantity | 120PCS/20GP | 120PCS/20GP | 120PCS/20GP | 90PCS/20GP | 45PCS/20GP |
| | 240PCS/40HQ | 236PCS/40HQ | 228PCS/40HQ | 192PCS/40HQ | 96PCS/40HQ |
Detailed Photos
More model options:
If you want to know more product model details, please contact us!
Company Profile
Shanghai Hystrong Industrial Co.,Ltd.
With twenty years experiences in manufacturing & exporting machine and tools, we have enjoyed considerable good reputation from our customers over the world because of the high quality and first-class after sale service.
To guarantee the quality,we produce the industrial tools from carefully selected raw material and with advanced manufacturing equipment.
We bear in mind that consistent high quality products are crucial to the ongoing success of operation. With our extensive
applications knowledge we can engineer the tools to the most exacing need.
Certifications
Packaging & Shipping
