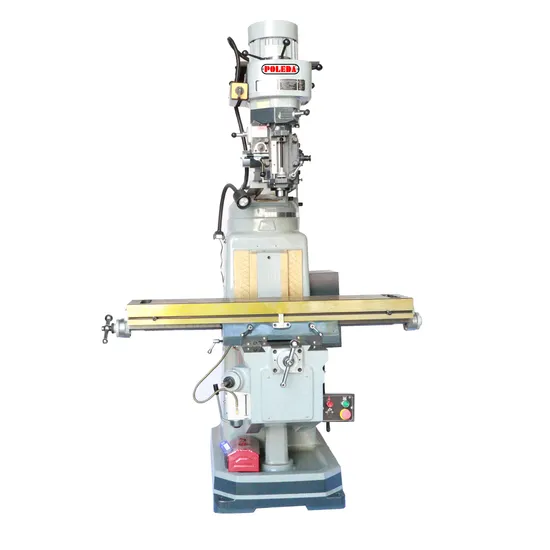

4s High Precision Turret Milling Machine Taiwan Quality (R8/NT30 spindle)

Product Description

Product Description
The milling machine stands as a crucial machine tool, adept at cutting materials on machined parts using a rotating tool. Renowned for its versatility, this machine excels in metal cutting processes, enabling the machining of planes, surfaces, and gear parts. Additionally, it offers capabilities for drilling, reaming, boring, and more.
Basic Structure of the Milling Machine:
The fundamental structure of the milling machine comprises several key components, including the bed, sliding table, workbench, horizontal shaft, column, beam, guide rail, and motor.
1. Bed: The bed serves as the foundational support of the milling machine, accommodating various components. Typically cast for enhanced stability and robust rigidity, the bed ensures reliable operation.
2. Slide Table: The slide table is a dynamic component, facilitating forward and backward movements on the bed. It is integrated with a workbench and a horizontal shaft, enabling precise positioning and processing of the machined parts by maneuvering the slide table.
3. Workbench: The workbench acts as the operational platform of the milling machine, designed to securely hold and fix machined parts. It offers rotational, tilting, and other movements to accomplish intricate and complex machining tasks.Machined partprocessing.
Product Parameters
Structural characteristics
1. The base, fuselage, workbench, middle slide seat, lifting slide seat, and other main components are cast using high-strength materials, ensuring robust construction and durability.
Additionally, these components undergo artificial aging treatment to guarantee the long-term stability and reliability of the machine tool.
2. The milling head is equipped with a turret milling head, and the main shaft offers both manual and micro feeding methods, enabling precise and convenient processing.
The milling head can be adjusted ±45° in the vertical plane and 360° in the horizontal plane, significantly expanding the machining range of the machine.
3. The vertical and horizontal table supports three feeding methods: manual feed, mobile feed, and mobile fast feed. The mobile feed can achieve 8 different feed speeds.
This versatility meets various processing requirements, while the fast feed function allows the workpiece to reach the machining position swiftly, reducing non-machining time.
4. The lifting platform Z-lift can be operated manually or through maneuvering, with both methods interlocked to eliminate unsafe factors.
5. The table's X-direction travel extends up to 800mm. The guide pairs in the X, Y, and Z directions undergo ultra-audio quenching, precision grinding, and scraping treatment,
Enhancing accuracy and significantly prolonging the machine's service life.
6. The manual lubrication device ensures forced lubrication of the longitudinal, horizontal, and vertical lead screws and guide rails, minimizing wear and maintaining the machine's efficient operation.
Moreover, the cooling system allows for adjustable coolant flow via the nozzle, catering to diverse processing needs.
7. The machine tool's operating system is ergonomically suspended on the upper right side through the support arm, making it easy to operate.
The operation panel features intuitive and figurative symbols, simplifying the user interface.
8. The turret milling machine spindle can be configured with R8, NT30, or NT40 options,
9. It is equipped with an improved electrical box and controller, featuring 110V and 220V output sockets.

Product Name	Milling machine
Product model	3M/3S/4M/4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	740MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	360MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-410MM
	Table bearing	300KG
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	Three-axis screw diameter	Tr32mm
	Three-axis lead screw pitch	5mm
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11, chuck	1
