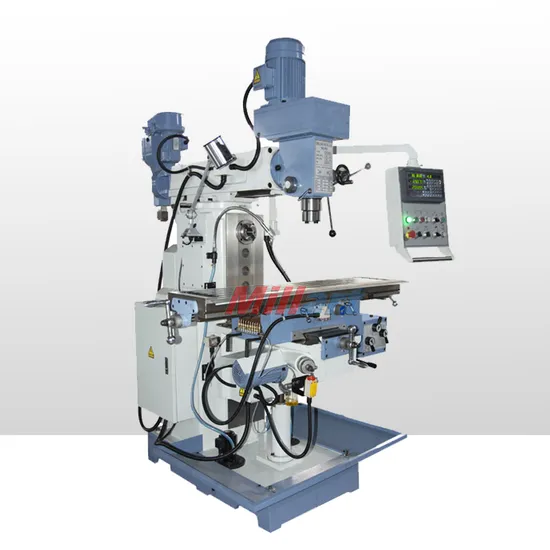

High Speed Knee Type Milling Drilling Machine Zx6350A, Universal Auto Feeding Vertical Drilling and Milling Machine

Product Description

Product Description
Feature:
Milling machine equipped with vertical head and horizontal spindle
Tool mount taper ISO 40
Milling machine with working feeds in X and Y axes, and quick setting feed in Z axis
Vertical head moved out spindle
Vertical swivel head within 0~90 degree
Extended and swivel upper arm
Specification:

Model	ZX6350A
Spindle taper	ISO40(V) ISO40(H)
Max.drilling diameter	50mm. 30mm
Distance from spindle to table	100-480mm
Distance from horizontal spindle to table	0-380mm
Distance from spindle to column	200-580mm
Spindle speeds	(8)115-1750r.p.m.(V) (12)40-1300r.p.m(H)
Spindle travel	120mm
Feeding of quill	(3steps)0.04 0.08 0.15
Max drilling capacity of auto-feeding	12mm
Head movement(left/right)	45 degrees
Table size	1370x320mm
Table travel(horizontal/cross/vertical)	750x320x380mm
Feeding range of longitudinal cross travel	(8)22-555mm/min
X,Y-axis rapid feed speed	810mm/min
Z-axis rapid feed speed	560(max)
Z-axis motor power	750W
T-slot number /width/distance	3/14mm/70mm
Horse power for main motor	1.5KW/2.2KW
X,Y axis driving motor	750W
Overall dimension	1750x1600x2150mm
N.W./G.W.	1650/1750kg

Standard accessories:
Drill chuck
Collet chuck kits
Draw bar
Reduction sleeve
Mill arbors
Working lamp
Coolant system
Chip tray
Machine vice
Operate tools
Optional accessories:
3-axis DRO
58 pcs clamping kits
Work table protection
Dividing head
Rotary table
Company information:
Packaging & Shipping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
