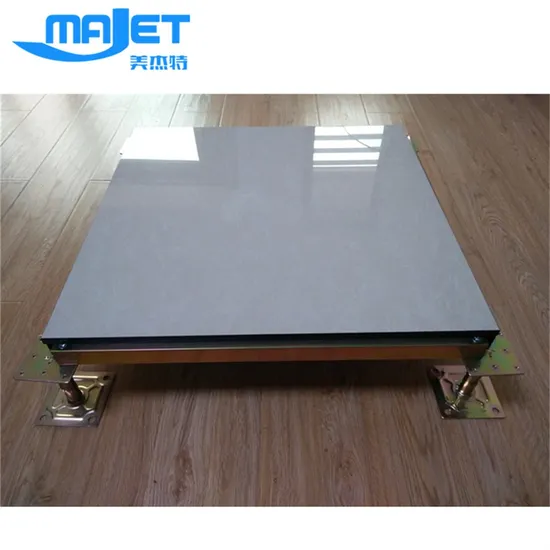

Anti Static Raised Floor for Data Center Room and Computer Room Office Building Floor

Product Description

Anti Static Raised Floor for Data Center Room and Computer Room Office Building Floor Product Description Laminated panel with OA panel finished with different surface finishes. OA panel is made of steel plate, top to be SPCC material,bottom to be ST14 materials.After pan formed and joined together by resistance welding, the panel is coated with epoxy paint, then infilled with light cement.
Feature
Used for computer room,data center and communication center
Excellent rolling load & ultimate load performance
Light weight cement makes panels solid and quite
Black/grey epoxy paint finish for long time protecting
Class A flame spread and smoke development rating
Convenient installation supplies an excellent solution for office intergrity,wiring and data cable service
Wide range finishes available
Product Parameters

Type	Size	Concentrated			Impact Load	Ultimate Load	Uniform Load	Rolling Load/N
International	mm	LB	N	KG	N	N	N/M2	10Times	10000Times
SC668	600*600*35	≥672	≥2990	≥233	670	≥8890	≥12500	2215	1548
SC800	600*600*35 610*610*35	≥809	≥3596	≥366	670	≥10799	≥19796	2959	2215
SC1000	600*600*35 610*610*35	≥1012	≥4498	≥458	670	≥13494	≥23294	3596	2959
SC1250	600*600*35 610*610*35	≥1258	≥5595	≥570	670	≥16797	≥33084	4498	3596
SC1500	600*600*35 610*610*35	≥1505	≥6693	≥682	670	≥20090	≥42581	5595	4498
SC2000	600*600*35 610*610*35	≥2002	≥8898	≥907	670	≥26685	≥49784	6693	5595
SC2500	600*600*35 610*610*35	≥2495	≥11093	≥1131	670	≥33290	≥58280	8898	6693

Other products

Application *commercial office buildings
*data center,computer room
*educational facilities
*casions
*clean room
*libraries
Production process
Company Profile
MAJET is a leading manufacturer and exporter in China, supplying access floor system, data center products, underfloor air conditioning, underfloor wiring and accessories. We have over 60,000 square meters plant and 200 workers and around 34 years experience in this industry.
FAQ Q1.What is your MOQ?
A: 100pieces each type

Q2.What is the loading quantity in one 20GP?
A:1100-1500pieces,depending on the raised floor type.

Q3.When is your delivery time?
A: 30days after receiving the prepayment.

Q4.What is your package?
A:packed in wooden pallet,covered with plastic film.

Q5.What is your payment term?
A:T/T,L/C,Western Union.
