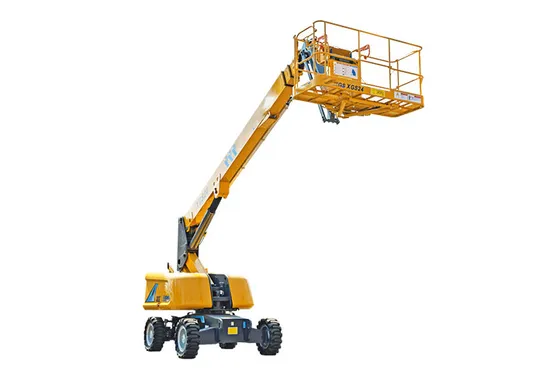

Oriemac Official Xgs34 34m New Telescopic Straight Arm Aerial Working Platform Boom Lift for Sale
| US$20,000.00-30,000.00 | 1 unit (MOQ) |
Basic Info.
Model NO.
XGS34
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Construction
Lift Mechanism
Telescoping Lift
Carrying Capacity
Middle-Level
Moves
Self-propelled
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Model
Xgs34
Weight
18400kg
Engine
Perkis
Traveling Motor
Danfos/Sunbun
Maximum Working Range
24.6m
Maximum Load Capacity
230kg
Platform Size
2400*900mm
Maximum Travel Speed
5km/H
Transport Package
40′hq Container
Specification
CE, ISO
Trademark
ORIEMAC
Origin
Jiangsu, China
Production Capacity
1000unit/Month
Product Description
ORIEMAC Official XGS34 34m New Telescopic Straight Arm Aerial Working Platform Boom Lift for SaleOfficial XGS34 34m new telescopic straight arm platform boom lift.
Official XGS34 34m new telescopic straight arm platform boom lift has electronic control turning, wide foam tires, excellent climbing driving, adaptive to various complicated road conditions; dual loading operation curves for real-time loading control; the widest operation reach of proucts of the same class.
Official XGS34 34m new telescopic straight arm platform boom lift meets demands of users from building construction, bridge and equipment maintenance, shipyard and petrochemical industry.
Advantages and features:
1. Official XGS34 34m new telescopic straight arm platform boom lift is the widest of the products of the same class, which improves the operation capacity; Strong driving capacity, grade ability up to 45%.
2. Enabling aerial work platform XGS34 to incomparably move in any complicated site.
3. Real-time monitor the load, effectively making use of boom and making its work performance at leading edge.
4. Specific human-machine interactive system, forming a perfect safety protection system.
III. Configuration of XGA26 Main Parts
| Item | Unit | Parameter |
| Overall length of complete machine | mm | 14300 |
| Overall width (With shaft retracted/extended) | mm | 2490/3800 |
| Overall height | mm | 3070 |
| Wheelbase | mm | 3800 |
| Max. working height | m | 34.2 |
| Max. platform height | m | 32.2 |
| Max. working range | m | 24.6 |
| Max. load capacity | kg | 230 (unrestricted)/340 (restricted) |
| Luffing range of boom | ° | -6 ~ +75 |
| Slewing angle of turntable | ° | 360° |
| Max. rearward slewing (With shaft retracted/extended) | mm | 2085/1430 |
| Dimension of platform | mm | 2400×900 |
| Slewing angle of platform | ° | 160 |
| Overall weight | kg | 18400 |
| Max. traveling speed | km/h | 5 |
| Min. turning radius (axle retracted/extended) | m | 8.2/10.8 (Two-wheel steering) 5.8/6.8 (Four-wheel steering) |
| Min. ground clearance | mm | 260 |
| Max. gradeability | % | 45 |
| Specification of tire | - | 385/65D22.5 |
| Engine model | - | Perkis 1104D-44T |
| Engine rated power | kW/(r/min) | 55.5/(2400) |
IV.Main Technical Specification of XGA26
