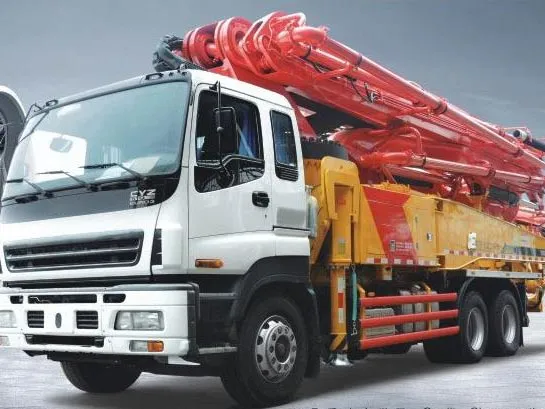

56m Hydraulic Concrete Pump Engine Stage III Sym5449thbf 560c-8A
Basic Info.
Model NO.
Sym5449thbf 560c-8A
Type
Concrete Pump
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
150m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
White
Boom Vertical Height
56m
Boom Vertical Depth
36.6m
Gross Weight
44000kg
Boom Horizontal Length
51m
Maximum Speed
90km/H
Outline Dimension
14080*2550*4000mm
Overall Weight
44000kg
Engine Maximum Net Power
348/1900kw/Rpm
Fuel Tank Capacity
600L
Pipe Diameter
125mm
Displacement
12.94L
Transport Package
Nude Package
Specification
14080*2550*4000mm
Trademark
Goldzim
Origin
China
HS Code
84295100
Production Capacity
1000pieces/Year
Packaging & Delivery
Package Size
1408.00cm * 255.00cm * 400.00cm
Package Gross Weight
44000.000kg
Product Description
56m Hydraulic Concrete Pump Engine Stage III Sym5449thbf 560c-8AProduct Description
One-button Technology(for 53m and above TMCP) One-button fixed boom position function quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose. Boom Anti-Vibration Technology(for 53m and above TMCP) The boom anti vibration technology reduces vibration during pumping by 50% allowing less movement and greater control of the end hose. Energy-saving Technology When system pressure reaches 12Mpa:No. of stroke reaches 29t/Min. Pump efficiency increases 25%(Max). Diesel consumption decreases 10%. Anti Overswing Technology To use top rotation brake technology to control the amplitude of Boom on swing, the boom's overswing amplitude is reduced by 60%. Self-diagnosis Technology Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.
Optional parts 1) Automatic leveling device 2) Front bulldozing blade 3) Rear ripper 4) Heavy-duty blade
Product Parameters
| Item | Unit | SYM5445THBFS 560C-8A |
| Outline dimension | mm | 14080*2550*4000 |
| Overall weight | kg | 44000 |
| Brand | / | Benzz |
| Vertical Reach | m | 56 |
| Horizontal Reach | m | 51 |
| Reach Depth | m | 36.6 |
| Emission standard | / | China VI |
| Theoretical | m³/h | 180 |
| Concrete pumping pressure | MPa | 8.3/12 |
| Chassis model | / | SYM5440THB1F |
| Engine type | / | D13C6-480E0 |
| Engine Maximum Net Power | kW/rpm | 348/1900 |
| Fuel Tank Capacity | L | 600 |
| Pipe Diameter | mm | 125 |
| Displacement | L | 12.94 |
| Transfer | / | Rock valve/S valve |
Detailed Photos
