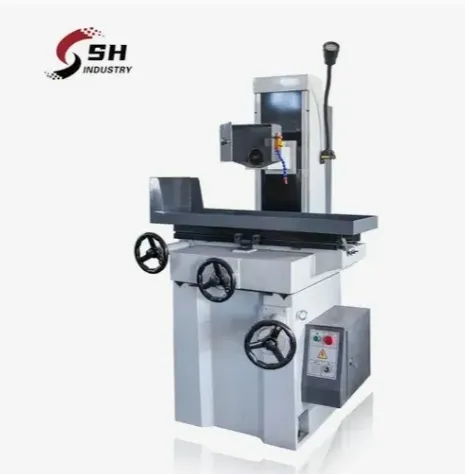

Surface Grinder M618A M820 M1022 CE Approved Manual Surface Grinding Machine

Product Description

Surface Grinder M618A M820 M1022 CE Approved Manual Surface Grinding Machine
Product Description
The main performance characteristics:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.
3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.
4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.
5. No vibration, low noise motor spindle.
6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Product main technical parameters:

Specifications					Units	M618A	M820	M1022
workbench	Worktable size (L * W)				mm	460×180	480×200	540×250
	Max. travel of table (L * W)				mm	500×190	530×220	560×260
	Table T slot (slot number x slot width)				mm	1×14	1×14	1×14
Grinding head	The grinding wheel size (o. d * w * i. d.)				mm	φ180×13×Φ31.75	φ200×20×Φ31.75	φ200×20×Φ31.75
	Distance spindle center line to working table				mm	335	440	420
	Grinding wheel speed			50HZ	r/min	2850	2850	2850
				60HZ	r/min	3440	3440	3360
The amount of feed	The vertical (up and down) feed handwheel feed			Handwheel per turn	mm	1.25	1.25	1.25
				Handwheel per lattice	mm	0.01	0.01	0.01
	Transverse (front and rear) feed handwheel feed			Handwheel per turn	mm	2.5	2.5	4.0
				Handwheel per lattice	mm	0.02	0.02	0.02
Motor power			Spindle motor		kw	1.1	1.1	1.5
			Cooling motor		W	40	40	40
working accuracy	The process surface of the base level of the parallel degree				mm	300:0.005	300:0.005	300:0.005
	Surface roughness				μm	Ra0.32	Ra0.32	Ra0.32
Machine weight		Net weight			kg	650	750	850
		Gross weight			kg	750	850	950
External size (L * w * h)					mm	1550x1150x1590	1680x1140x1760	1680x1140x1760
Packing size (L * w * h)					mm	1000x1150x1760	1140x1250x1940	1200x1400x1940

Detailed Photos

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
