Professional Production Fish-Bone Floor CNC Slotting Machine, V Cutting Machine

Product Description

Product Description
The slotting machine adopts high accuracy double-chain continuous feeding method. The floor will be conveyed to slot position after being feeding with designed angle, and the floor will be processed after going through the cutter. The convey chain and pressed line send the fish-bone joint floor out, and goes to the discharging device. In order for being used for different fish-bone floor with different length or angles, the slotting machine is designed for moving horizontally, and the moving is adjust by touch to input the length and angle you need. It is moving and positioning automatically. The moving is driven by motor with accuracy to 0.01mm.
The fish-bone floor after processing can satisfy customer' requirement for floor size and angle, and there is no angle collapse or edge warping. The cutter with 6+6 structure can also finish the processing of inter-locker shape.
We aim to satisfy the flooring process requirement for both domestic and oversea customer with accurate, reliable and efficient machine, and we can customize special machine according to your customer's requirements
Product Parameters

Machine Technical Specification
Cutter shaft structure	4+4(6+6)
Feeding Speed(m/min)	5-40
Floor Width(mm)	60-500
Floor(mm)	320-1200
Floor Thickness(mm)	4-25
Material feeding height(mm)	1100
Cutter shaft motor power(Kw)	6.2-10
Max rotate speed of cutter shaft motor(rpm)	6000
Cutter shaft motor diameter(mm)	φ40
Cutter diameter(mm)	φ250-285
Shape size(mm)	6900X2920X1854
Processing material	solid-wood, laminated wood, bamboo laminated floor, SPC, WPC and LVT, etc
Floor processing angle	30°,45°,60°, 90° and fish-bone joint floor with any angle degree.
The specification above can be designed and adjust according to customer needs. We may update the specification above, the actual specification will be finalized after confirm with customer.

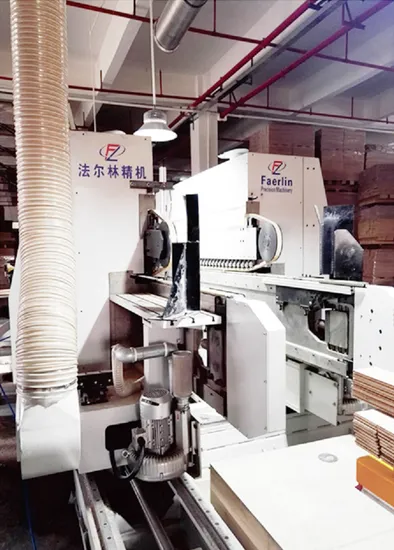

Detailed Photos
