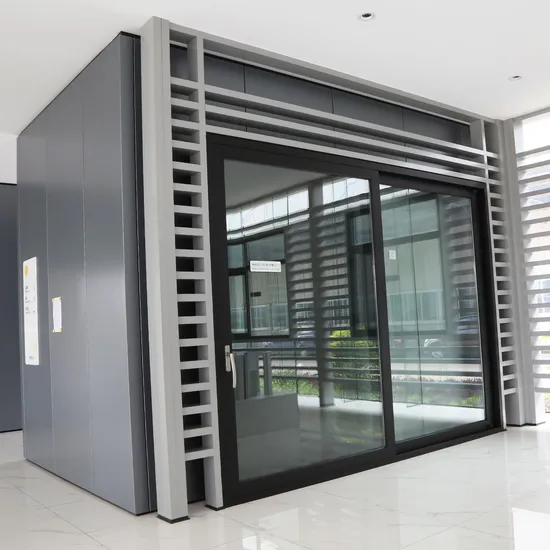

High Standard Aluminium Heavy Duty Lift and Slide Door

Product Description

High Standard Aluminium Heavy Duty Lift and Slide Door
HSD190 is a high-end class LIFT-SLIDE system, for huge opening with impressive and luxurious
HSD190 system has an Intelligent and smart drainage device guarantees water tightness.
It can be a classic SLIDING with same profiles and with the same performances.
Corner constructions without mullion profiles connection.
Stainless steel rail for minimizing the friction between frames and sashes. More smoothly slide of the sashes.
TECHNICAL PARAMETERS

Performance
Heat Insulation W(m2.k)	Sound Insulation (DB)		Water Tightness (Pa)		Air Tightness		Wind Load (KPA)
2.3-2.8 level 5/6	35DB level 4		500PA level 5		level 6		3.1KPA level 5
Parameters
Sash Width/Height (mm)	Visible Width (mm)			Depth (mm)			Glass Thiickness (mm)
/idth 720-3300mm /eight 1800-2700mm Weight 300kg	Fame Width 40mm Sash Width 100mm			Frame Depth 130/190mm Sash Depth 50mm			SGU: 8-10mm DGU: 24-35mm

POWDER COATING
ANODIZED&ELECTROPHORESIS
WOODEN FINISHED
ALUMINIUM EXTRUSION FACTORY CAPACITY

ALUMINIUM ALLOY	EXTRUSION DIAMETERS	BILLET CASTING LINE	EXTRUSION LINE	POWDER COATING LINE	ANODIZED LINE
6063/6061-T4,5,6	80mm-300mm	2*casting Lines	14*extrusion Line	1*vertical coating line	1*full automatic line
FACTORY AREA		ANNUAL OUTPUT		STAFF/R&D
1800	Acres	100,00	Tons	650/25	members

BILLET CASTING WORKSHOP
DIES WORKSHOP
EXTRUSION WORKSHOP
POWDER COATING LINE
FULL-AUTOMATIC ANODIZED WORKSHOP
ALUMINIUM WINDOWS&DOORS FABRICATION WORKSHOP
ALUMINIUM GLASS CURTAIN WALL FABRICATION WORKSHOP
WHAT PRODUCTS WE OFFER
As of now we have successfully designed, manufactured and supplied globally the entire range of aluminium architectural and industrial products and hardwares and it includes the following:
•Aluminium profiles
•Sliding Doors
•Sliding Windows
•Entrance Doors
•Casement Windows
•Bi-folld door
•Unitized Curtain Walls
•Shopfront
•Sun rooms
•Partitions
•Balcony railings
•Structural Glazing
•aluminium cladding
•Aluminium formworks
WHAT SERVICE WE OFFER
Customized
Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.
Technical Support
The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design
Based on the clients' and market's requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
FAQ
Q: Are you trading company or manufacturer?
A: We are aluminium manufacturer located in QINGYUAN with more than 30 years experience. And you are warmly welcomed to visit us.
Q: How long is your delivery time?
A: Generally it is 15-20 workdays after receiving payment.
Q: Do you provide samples for free? What's the MOQ?
A: The new die samples are free for approval and inspection. The MOQ is 8-10tons
Q: What is the payment terms?
A: 30% upon order confirmation and the balance should be paid before delivery by T/T./after receiving B/L copy. /L/C at sight
