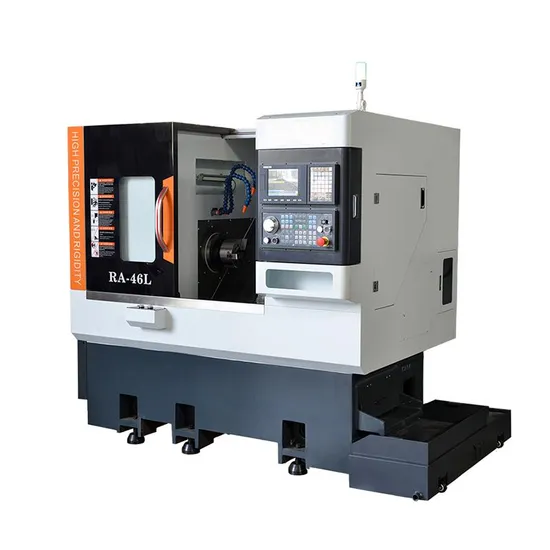

Heavy Duty Flat Bench Cutting Horizontal Metal Machine/CNC Machine Lathe with Dual Spindle

Product Description

Product Description
Usage:
Step into a new era of industrial prowess with our state-of-the-art Two Spindle CNC Machine Tools. These extraordinary machines represent a pivotal advancement in mechanical processing, skillfully enhancing sectors like automotive, motorcycle, valve manufacturing, and pressure vessels with an exceptional blend of precision and efficiency. They establish the standard in hydraulic systems, oil circuits, aerospace, molds, and other niche domains, effortlessly managing the production of intricate and complex components. Immerse yourself in groundbreaking innovation with the ability to process dual workpieces or multiple surfaces simultaneously, and revolutionize your industrial potential with this high-performance machine.
Features:
High Efficiency: Elevate your production capabilities with our pioneering dual-spindle technology. The Two Spindle CNC Machine Tools are meticulously engineered to escalate efficiency to unparalleled levels through simultaneous processing, transforming your workflow and amplifying your production capacity.
High Precision: Unmatched precision is the defining characteristic of our Two Spindle CNC Machine Tools. Precisely engineered with an unwavering focus on detail, they are crafted to surpass the highest standards of machining accuracy. Whether perfecting internal or external roundness, or achieving impeccable roundness and coaxiality, every cut is made with exceptional precision.
Space and Labor Cost Savings: Revolutionize your workspace with the dual-functionality of our Two Spindle CNC Machine Tools, effortlessly merging the capabilities of two machines into one streamlined unit. This remarkable innovation significantly reduces space requirements while optimizing operations, resulting in substantial savings on labor costs and minimizing workforce demands.
Product Parameters

Project		Name	specification	Unit
Process range		Max bed rotating diameter	Φ400	mm
		Maximum processing length	500	mm
		Maximum processing diameter (shafts)	Φ75 Φ45	mm
		Maximum processing diameter (disk type)	Φ400	mm
X / Z / Y X2 / Z2 / Y2		X / Z / Y axis travel	500 / 600 / 100	mm
		X2 / Z2 / Y2 Axis Travel	400 / 650 / 300	mm
		Repetition accuracy X / Z / Y	±0.003	mm
		Position accuracy	±0.005	mm
Movement		X / Z / Y	30/30/28	mm
		X2 / Z2 / Y2	30/30/18	mm
Screwdriver		X / Z / Y	32/36/40	mm
		X2/Y2/Z2	32/33/25	mm
Rails		X / Z / Y	35/35/30	mm
		X2/Y2/Z2	30/35/25	mm
Turrets		Turrets	12T
		Turning tool specifications	25X25(rectangular)
		Bore cutter specification	Φ25 Φ32	mm
Spindle		Positive/sub spindle nose form	A-26(75) / A2-5(45 ) - A2-4(36)	/
		Through-hole diameter of main/sub spindle	Φ75(Φ45) / Φ36	mm
		Positive/sub spindle speed	3500-4500 / 5000	rpm
Control System		Positive/sub spindle motor power (electric spindle)	18.5 / 7.5	kw
		X / Z / Y axis servo motor	3.0 /2.2 / 2.0	kw
		X2/ Z2 / Y2 axis servo motor	1.8 / 2.0 / 1.0	kw
		Turret power head milling cutter motor/backside shaft end motor	2.0 / 1.0	kw
Dimension		Length/Width/Height	2700 X 1950 X 2050	mm
		Heavy	4.9	T

Detailed Photos
Turret: Engineered to cater to the rigorous demands of modern machining, the turret on this CNC Lathe Grinder is a marvel of versatility and efficiency. Equipped with an impressive configuration of up to 12 tools, including 8 powered holders for rotary-based cutting and 4 unpowered holders, this innovative system transforms machining tasks into seamless operations. Adapt effortlessly to a broad array of machining needs with unmatched precision and efficiency, ensuring a flawless workflow that meets even the most exacting standards of performance.
Spindle: Embrace unparalleled precision with our dual spindle dual turret lathe, a beacon of efficiency and versatility in machining excellence. Master complex turning processes with finesse, achieving flawless continuous processing of external circles and end faces. Excel in milling plane surfaces, drilling center holes, opening side grooves, and performing angled hole and surface processing, all with impeccable precision and efficiency. Witness the future of machining where every operation is executed seamlessly and flawlessly.
Unlock the potential of advanced machining with our machine's state-of-the-art multi-process and multifunctional composite capabilities. This powerhouse dramatically reduces auxiliary time, enhancing machining accuracy and efficiency to ensure optimal performance at every turn. By seamlessly blending speed with precision, it sets a new benchmark in cutting-edge manufacturing excellence.

CNC system: Standing at the pinnacle of technological advancement, our double spindle Swiss CNC turning bench lathe is equipped with an innovative CNC system that revolutionizes automation in machining processes. Through cutting-edge computer programming, this high-tech system orchestrates a symphony of advanced hardware components-such as the CNC unit, servo motor, drive, and sensors-alongside sophisticated software elements like the machining program, user interface, and data processing. This harmonious integration delivers unmatched precision and efficiency in every operation, setting new standards of excellence in the industry.
Automatic Measurement and Compensation System: Step into the future of machining precision with our groundbreaking Automatic Measurement and Compensation System. This revolutionary system offers unparalleled accuracy and stability through real-time online detection and correction at every machining stage. By continuously monitoring vital parameters such as temperature, vibration, and cutting force, it ensures real-time adjustments and optimization. Each operation is executed with unmatched precision, informed by the latest monitoring results, guaranteeing superior performance and quality that stands above the rest.
Processing Range
At Dongguan Luotuo Industrial Co., Ltd, we proudly unveil our High-End CNC Lathe Grinder-a remarkable feat of engineering brilliance. Crafted with exceptional precision, this cutting-edge CNC machine epitomizes innovation, skillfully engineered to surpass expectations across a diverse spectrum of part production demands. It is the ultimate solution for components requiring the pinnacle of precision.
Parts with Uncompromising Precision Requirements:
Our twin-spindle CNC lathe is endowed with groundbreaking technology, integrating a high-precision motion control system coupled with an automatic measurement and compensation mechanism. This ensures impeccable accuracy, making it indispensable for manufacturing parts where precision is of utmost importance.
Intricately Shaped Parts:
The five-axis linkage processing capabilities of our lathe allow it to expertly handle the most complex parts and surfaces imaginable. Whether addressing internal or external cylindrical surfaces, conical, stepped, spherical, or other intricate rotary surfaces, our machine excels in producing components with detailed geometric intricacies, delivering unparalleled sophistication and ease of operation.
Parts Requiring Multi-Process and Multi-Function Operations:
Equipped with dual spindles and dual turrets, our advanced CNC machinery skillfully executes simultaneous multi-axis machining. It performs an extensive range of operations with precision, such as external round and face turning, seamless back and front surface machining, flat surface milling, central hole drilling, side grooving, and crafting precise slanted and beveled holes at any angle with exceptional expertise.
Parts with Versatile Material Compatibility:
Our CNC machinery is an engineering marvel, designed for both rough and finish machining, seamlessly accommodating both rough cast and forged pieces. It proficiently handles an extensive array of materials, including high-temperature alloys, titanium alloys, heat-resistant alloys, stainless steel, cast iron, and cast steel, making it an invaluable asset for industries requiring exceptional versatility and material adaptability.
Our Advantages
At Dongguan Luotuo Industrial Co., Ltd, we are dedicated to delivering pre-sales consulting services that truly stand out in the industry. Our steadfast dedication to excellence is evident in our ability to expertly guide you in selecting the ideal CNC lathe models and configurations, meticulously tailored to align perfectly with your distinct specifications. Our team of seasoned professionals is always ready to engage with your inquiries, offering comprehensive technical support throughout your entire experience. We pride ourselves on developing bespoke solutions that meticulously address every aspect of your requirements. From precise equipment selection to innovative process design, seamless installation, and smooth commissioning, our holistic one-stop services are carefully crafted to meet the unique needs of every client. This ensures an exceptional, personalized, and seamless experience that genuinely distinguishes us.
Our innovative machinery is equipped with a cutting-edge CNC system, delivering unparalleled control and outstanding machining efficiency. With its extraordinary capability to support complex programming and precise parameter adjustments, we assure unmatched precision and expert machining proficiency. This empowers you to tackle even the most demanding tasks with absolute confidence and ease, setting new standards in operational excellence.
Our CNC lathe, crafted from the finest materials, represents the height of precision manufacturing. This ensures exceptional stability and reliability. The superior craftsmanship significantly reduces failure rates and lowers maintenance costs, leading to a substantial boost in productivity and operational efficiency. Experience a level of performance that establishes an industry benchmark for industrial excellence, propelling your operations to new heights.
Packaging & Delivery
FAQ
1. What are the Payment Terms?
A: We accept T/T payments. To initiate your order, a 40% deposit is required upfront, with the remaining 60% balance payable before shipment of your Advanced CNC Machinery with Metal-Cutting Lathe and High Precision Milling Machine Tools.
2. What are your Trade Terms?
A: We offer flexible trade terms to suit your needs, including FOB (Free On Board), CFR (Cost and Freight), and CIF (Cost, Insurance, and Freight).
3. When is the Delivery Time?
A: For standard models of our Advanced CNC Machinery, delivery can be arranged within 30 days. Custom or specialized machines may require additional lead time. Orders are processed based on our detailed delivery and shipping schedule.
4. What is your Minimum Order Quantity and Warranty?
A: Our minimum order quantity (MOQ) is just one set. Each machine is backed by a comprehensive one-year warranty, ensuring reliability and peace of mind.
5. How are the Machines Packaged?
A: Our machines are meticulously packed in industry-standard wooden cases, providing the utmost protection during transit to ensure they arrive in perfect condition.
6. How Can I Choose the Most Suitable Machines?
A: Simply provide us with your specific requirements and we'll recommend the most suitable model for your needs. If you already have a model in mind, we can accommodate that as well.
