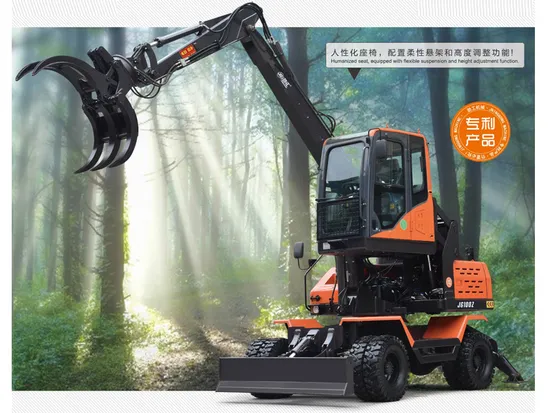

Jg100z Log Wood Grapple Loader
| US$32,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JG100Z
Type
Wheel Excavator
Usage
Special Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Transport Package
Nude Packing
Specification
6450*2200*2950mm
Trademark
JING GONG
Origin
China
Production Capacity
3000sets/Year
Product Description
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 3680-4000mm | ||||||||
| Arm length | 1850-2650mm | |||||||||
| Max radius of capture | 7000-7800mm | |||||||||
| Grab the biggest opening width | 1250mm | |||||||||
| Grab the minimum opening width | 80mm | |||||||||
| Maximum radius weight capacity | 500-700kg | |||||||||
| Grapple rotation angel | 360° | |||||||||
| Maximum Dumping height | 4650-5100mm | |||||||||
| Back-End radius of gyration | 1980mm | |||||||||
| Max lifting height of cab | 80~18000mm | |||||||||
| Max extended distance of arm | 800mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 6450*2330*3050mm | ||||||||
| Wheel base | 2430mm | |||||||||
| Track(Front/rear) | 1850mm/1750mm | |||||||||
| Ground clearance of counterweight | 1160mm | |||||||||
| Min ground clearance | 200mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 8300kg | |||||||||
| Engine model | YUCHAI/YUNNEI | |||||||||
| Rated Power | 62.5KW/65KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 21Mpa | |||||||||
| Hydraulic system flow | 150L/min | |||||||||
| Variable piston pump | 72ml/r | |||||||||
| Max Hauling force | 45KN | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 8.25-16 | |||||||||
| Volume Of Bucket | 0.35m3 | |||||||||
| Revolution Overdrive Pressure | 20Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥6L/h | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
