1200mm PP Double Layer Film Blowing Machine

1200mm PP Double Layer Film Blowing Machine

US$32,000.00-39,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
FMP2-1200
Raw Material
PP
Maximum Folding Width of Film
1100mm
Screw Diameter
65mm
Automation
Non-Automatic
Computerized
Computerized
Machine Weight
6t
Certification
CE, ISO9001:2008
Size
L*W*H: 6m * 3m * 4m
Voltage
380V 50Hz 3phase
Transport Package
Plastic Warp Film for Container Shipment
Specification
single layer
Trademark
Xiongqiu Plastic Machinery Co., Ltd.
Origin
Foshan, Guangdong Province
HS Code
8477800000

Product Description

The machine produces excellent plastic of film uniform thickness, transparency, smoothness, shrinkage and other quality indicatores of the printing grade films technical standards, as it uses many technologies such as rotary winder, frequency control and automatic temperatrue control.
Widely used in daily use package and industrial package such as food stuff, textile, garment and daliy products etc..
Model FMP-500 FMP-700 FMP-800 FMP-1000 FMP-1200
suitable material PP / PPE
thickness 0.02--0.20mm
film width(mm) 60--400 100--650 150--700 250--900 300--1000
max output 40kgs/hr 55kgs/hr 70kgs/hr 90kgs/hr 120kgs/hr

Extruder
screw diameter Φ45mm Φ55mm Φ65mm Φ75mm Φ85mm
L/D ratio 30:1
temp. controller 4 zone 4 zone 5 zone 5 zone 6 zone
barrel cooling 120w*2 120w*2 120w*2 250w*3 250w*3
driving motor 11kw 15kw 18.5kw 30kw 45kw

Die head
die diameter Φ130mm Φ180mm Φ250mm Φ320mm Φ400mm
air ring diameter Φ250mm Φ300mm Φ350mm Φ450mm Φ550mm
die structure Spiral mandrel die chrome plated surface 40Cr
cooling fan 550w 950w 1.1kw 1.5kw 2.2kw

Take up unit part
take up width 500mm 700mm 800mm 1000mm 1200mm
effective width 450mm 650mm 700mm 900mm 1000mm
take up motor 1.5kw 1.5kw 1.5kw 2.2kw 2.2kw

Winder
winder width 500mm 700mm 800mm 1000mm 1200mm
effective width 450mm 650mm 700mm 900mm 1000mm
winder motor 30kg 30kg 50kg 50kg 100kg
optional equipment auto-loader device, film surface treater, air compressor, rotary die head,automatic winder

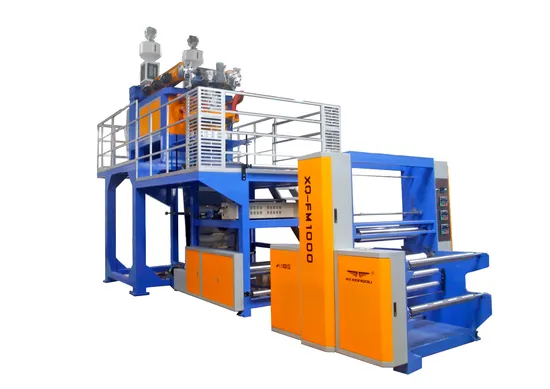

pictures for reference:
