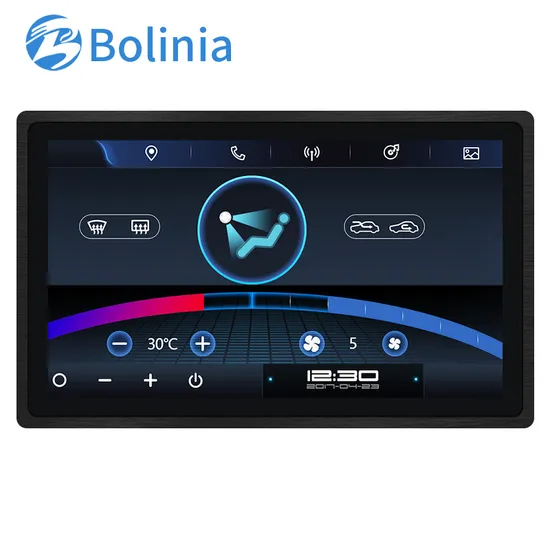

Industrial 21.5 Inch IPS 1920*1080 Embedded Mount Pure Flat VGA USB Pacp Touch Screen Icd Display PC with LED LCD Monitor.
Basic Info.
Model NO.
B215-QRL-RT-A
Application
Industrial Control System
Screen Type
Capacitive
Resistive Touch Screen Type
Digital
Customized
Customized
Backlight
LED
Contrast
1000:1
Brightness
250 Nits
Viewing Angle (H/V)
170/160
Operating Temperature
0~50ºC
Installation
Stand Base/Vesa Mount
Power Requirement
DC 12V
Certificates
CE/FCC/RoHS
Accessories
Stand/ Vesa Mount Kit, Warranty Card, VGA/HDMI Cab
Control
OSD Control
Transport Package
Single Item, Standard Packing
Specification
519.3*310.3*50.3mm 4.9kg
Trademark
Bolinia
Origin
China
HS Code
8528591090
Production Capacity
100000/Piece
Packaging & Delivery
Package Size
69.00cm * 49.00cm * 16.00cm
Package Gross Weight
9.500kg
Product Description
| Size | 21.5" |
| Touch Panel | G+G |
| Panel Type | IPS |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1920*1080 |
| Acpect Ratio | 16:9 |
| Contrast | 1000:1 |
| Brightness | 250 nits |
| Viewing Angle (H/V) | 170/160 |
| Response Time | 5 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |
| Video Inputs/Outputs | VGA+DVI+HDMI+USB+Audio+DC |
| Audio Inputs/Outputs | N/A |
| Touch | Project Capacitive touch |
| Installation | VESA mount |
| Power Requirement | DC 12V |
| Systems Supported | Windows XP/7/8/10, Android and Linux |
| Max Touch Points | 10 |
| Dimension (W*H*D) | 519.3X310.3X50.3MM |
| Weight | 4.9 kg |
| Certificates | CE/FCC/ROHS/CCC |
| Accessories: VESA wall mount kit/ Hanging ear/ Stand,VGA/HDMI cable, power adapter, warranty card and manual. | |
