Brand New Lifting Machine 50 Ton Hydraulic Truck Crane Qy50kd Mobile Pickup Crane 58m Max. Hoist Height with CE ISO

Product Description

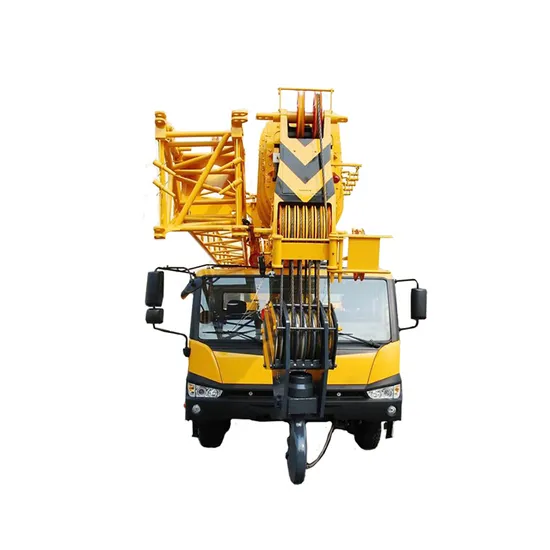

50Ton Heavy Duty Truck Hydraulic Mobile Truck Crane (QY50KC)

Feature QY50K truck crane's structure is compact, the industry operating performance is the highest. Lifting performance and driving performance of a comprehensive upgrade, leading competitors. Advantages and highlights: 1. Five section U-type booms. The boom length is 11.4m-43.5m with strong lifting performance, leading 5%-10% ahead of products with the same tonnages in the same industry.High-power engine with good dynamic performance, strong gradeability and superior trafficability. The maximum gradeability and maximum travel speed respectively are 42% and 85km/h. 2. Waterproof connector clip is equipped with rubber sheath inside with excellent water impervious and level of protection reaches to IP65. The air-conditioning condenser is separately installed, the heat-sinking capability is sharply improved and the environment temperature reached to more than 45ºC. 3. The boost system will work only by stepping on the clutch that effectively avoids gearbox damaging gears when shifting. Compared with the same industry, 100mm distance of shift gears and 45% of shifting force are respectively Parameters

Description		Unit	Parameter value
Overall length	/	mm	13930
Overall width	/	mm	2780
Overall Height	/	mm	3630
Axle base	1st ,2nd axle	mm	1470
	2nd ,3rd axle		4300
	3rd ,4th axle		1350
Wheel Base	/	mm	2304+2075
Front overhang/rear overhang	/	mm	2389/2064or 2376/2064
Front extension/rear extension	/	mm	2131/226 or 2144/226
Total vehicle mass in travel configuration	/	kg	42200
Axle load	Front axle	kg	16200
	Rear axle		26000
Engine Model	/	/	WD615.338
Engine rated power	/	kw/(r/min)	276/2200
Engine rated torque	/	N.m/(r/min)	1500/1300-1600
Max. travel speed	/	km/h	85
Min. steady travel speed	/	km/h	2~3
Min. turning diameter	/	m	24
Min. ground clearance	/	mm	327
Max. grade ability	/	%	42
Approach angle	/	°	19
Departure angle	/	°	15
Braking distance (at 30 km/h, full load )	/	m	≤10
Oil consumption per 100km	/	L	40
Exterior noise level during acceleration traveling	/	dB (A)	≤88
Noise level at seated position	/	dB (A)	≤90
Max. total rated lifting capacity	/	t	50
Min. rated working radius	/	m	3
Turning radius at turntable tail	/	mm	3800
Max. load moment	Base boom	KN.m	2009
	Fully-extended boom		1129
Outrigger span	Longitudinal	m	6.1
	Lateral		7.1
Hoist height	Base boom		11.9
	Fully-extended boom		44
	Fully-extended boom + Jib		58.1
Boom length	Base boom		11.4
	Fully-extended boom		43.5
	Fully-extended boom + Jib		59.5
Jib offset angle	/	°	0, 15, 30
Time for boom raising	/	s	≤40
Time for boom extending fully	/	s	≤90
Max. slewing speed	/	r/min	≥2.0
Exterior noise level	/	dB (A)	≤118
Noise level at seated position	/	dB (A)	≤90
