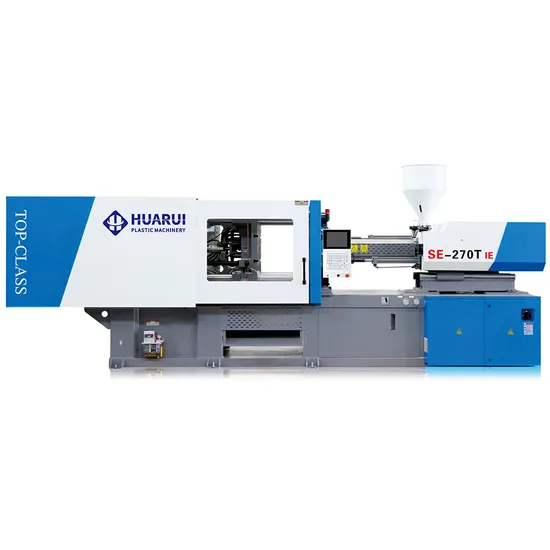

Precision Servo Energy Saving Injection Molding Machine Plastic Handle Production for Small Plastic Parts

Precision Servo Energy Saving Injection Molding Machine Plastic Handle Production for Small Plastic Parts

US$44,000.00-50,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SE-270T/IE
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Product Name
Plastic Injection Molding Machine
Product
Horizontal Injection Molding Machine
Injection Rate
200/350cm³/Sec
Weight
10000 Kg
Motor Power
50kw
Advantage
Durable
MOQ
1 PCS
Transport Package
Wooden Case
Specification
4.6*1.2*1.9m
Trademark
ENJI
Origin
Zhejiang, China
HS Code
847710109
Production Capacity
150 Pieces One Year

Product Description

Precision Servo Energy Saving Injection Molding Machine Plastic Handle Production For Small Plastic Parts
Product Parameters
Se-270T/IE Plastic Injection Molding Machine Information
Item Unit AA A
Screw diameter mm 40 45
Theoretical shot volume cm³ 283 358
Shot weight (PS) g 257 326
Shot weight (PS) oz 9.1 11.5
Length/Diameter ratio L/D 22 22
Injection pressure Bar 2531 2000
Injection rate cm³/sec 200/350
Max.screw speed rpm 300
Clamping force KN 2700
Max.daylight mm 880*830
Open stroke mm 560
Space Between Tie-bars mm 620*570
Min mould dimension mm 270
Mould thickness range mm 620
Ejector force KN 80
Ejector stroke mm 150
No.of ejector pins unit 13
Motor power KW 50
System pressure MPa 175
Heater input power KW 16
Oil filling capacity L 300
Machine size M 6.0*1.6*2.3
Net weight KG 10000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
