2 Axles 3 Axles 20GP 40FT 40T Flatbed Container Truck Lowbed Semi Trailer for Equipment

Product Description

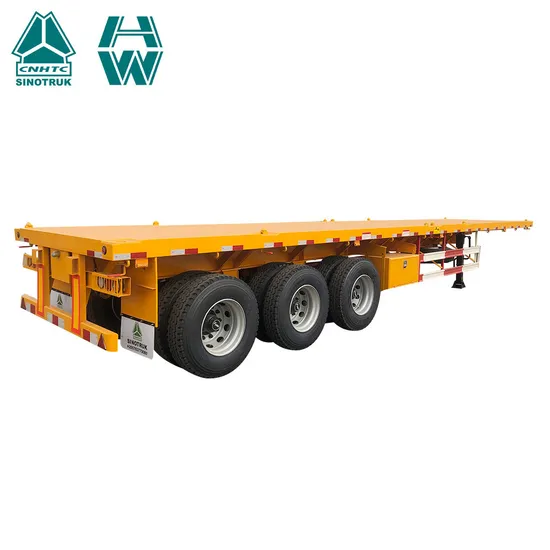

40ft flatbed container truck semi trailer
Trailer Features :
1. SINOTRUK brand and CCC/ISO9001 certificate approved;
2. BPW/FUWA/HJ brand 12/13/14/15/16 ton axles optional;
3. Heavy duty air/spring suspension optional;
4, Gooseneck strengthened for heavy load.

Technical Parameters

DIMENSIONS
Tare Weight		6000-8500 kg
Overall Length		12400 mm
Overall Width		2500 mm
Payload		40000-55000 kg
SPECIFICATIONS
I Beam & Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 16 mm,width 140mm; Middle Flange8 mm,Height 500mm, Bottom Flange 16mm,width 140mm.
Axle	3/4 axles
	BPW/FUWA/HJ 12/13/14/15/16 ton axles
Suspension	Heavy duty air/mechanical suspension
Floor	3mm checker plate
King Pin	JOST brand 2" Bolt-in King Pin
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim	8.25-22.5, 9.0-22.5, 8.0-20, 8.5-20, 11.75-22.5, 13-22.5 steel/aluminium rim
Tire	11R22.5, 12R22.5, 315/80R22.5, 12.00R20, 385/65R22.5, 425/65R22.5
Twist Lock	12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down.
Spare Tire	One set of spare tire including a carrier
Braking System	WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box

Photo of Products
Popular products:
Shipment:
Why choose us: SINOTRUK is the oldest and NO. 1 factory in China heavy-duty truck field. We work with Steyr and MAN. As branch factory of SINOTRUK Group, we'll provide you factory-direct prices. Mature technology, advanced production equipment, Strict quality control. SINOTRUK has branches in over 40 countries, over 160 distributors, over 330 service centers and over 310 spare parts showrooms in overseas market. Our advantages: Competitive factory price and excellent quality More than 20-year experience as a manufacturer Products quality certification SGS CCC ISO Perfect after-sale service Customized products available with us Export to more than 50 countries and regions Oversea warehouse with more than 100,000 US dollars spare parts in stock Oversea office with more than 15 professional engineers to help local customers Warranty: One year / 100,000KM quality guarantee for three key parts (engine, transmission, axles), whichever comes first. Other spare part could be supplied by OEM at cost price. Regularly callback to know the vehicles working status. Overseas engineers are always ready to be at service Our factory:
SINOTRUK HUAWIN is key branch factory of SINOTRUK Group. SINOTRUK HOWO and A7 are sold well in overseas market with good feedback. SINOTRUK HQ makes truck chassis and we make the truck body and trailers. Our trailers have been provided to Australia since 2009.
Welcome to our factory!
Tanzania Branch:
