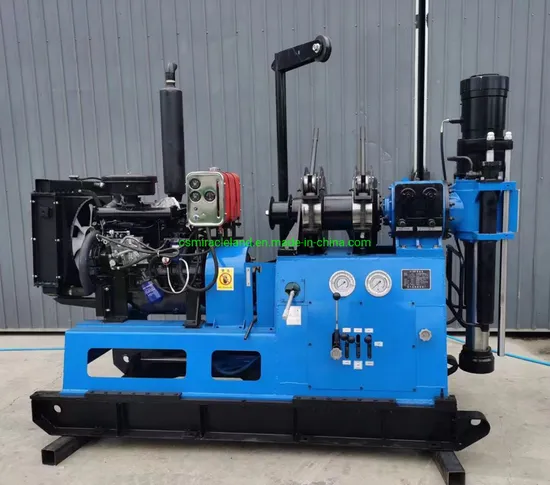

Gy-300A Rotary Hydraulic Core Drilling Machine for Borehole Water Well/Geotechnical Study
| US$8,500.00-12,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
GY-300A
Certification
ISO 9001:2000, ISO 9001:2008
Condition
New
Motor
Diesel Engine
Drill Hole Diameter
76-300mm
Drill Hole Depth
350m
Bit Type
Diamond Bit
Drilling Way
Rotary
Type
Sliding Type
Usage
Geotechnical, Water Well, Mining Exploration
Chuck
Hydraulic Chuck
Spindle Hole Diameter
80mm
Head Angle Range
360 Degree
Engine Brand
Changchai
Diesel Engine Power
24kw
Max. Torque
3000n*M
Spindle Speed
58-885 R/Min
Transport Package
in Plywood Case
Specification
300A
Trademark
GY
Origin
Changsha, Hunan, China
HS Code
8430691900
Production Capacity
20 Sets/ Month
Product Description
Product Description GY-300A is a core drilling rig for medium and shallow hole. It is applied not only to alloy and diamond core drilling with different calibers but also can be used for geological prospecting works, fluid ore drilling in surface layer and shot holes and drilling vent holes, drilling in hydrology, water wells and large bores. It has been widely used in such areas as road and railway construction, water resources and hydropower, and architecture.Product Features 1. Large torque, 8 rotation speeds in an appropriate range, large drilling capability.
2.The rig has two reverse rotation speeds to facilitate drilling and handle drilling problems.
3. Long feeding distance(600mm), higher drilling efficiency, lower probability of drilling problems.
4. Hydraulic pin chuck, able to reliably lock the Kelly bar without tiny damage to it.
5. The rig has large drilling capability with small size and light weight.
6. Mineral exploration, water well boring, pile hole boring.
Note: GY-300T is a model developed on the basis of GY-300A, which is integrated with a hydraulic tower system. The hydraulic tower can be set at different angles for incline drilling.
Product Parameters The technical parameters of the GY-300 hydraulic core drilling rig:
| 1.Drilling capacity | |||||||||||||
| Core Drilling | |||||||||||||
| Drilling rod type | Drilling rod size | Drilling depth | |||||||||||
| Drilling rod( China) | Inner thicken drilling rod | 42mm | 480m | ||||||||||
| 50mm | 350m | ||||||||||||
| 60mm | 250m | ||||||||||||
| Wireline drilling rods | 55.5mm | 400m | |||||||||||
| 71mm | 290m | ||||||||||||
| 89mm | 230m | ||||||||||||
| DCDMA Drilling rod | Wire drilling rods | BQ | 440M | ||||||||||
| NQ | 290M | ||||||||||||
| HQ | 195M | ||||||||||||
| PQ | 135M | ||||||||||||
| 2.Spindle Turnable angle | 0-360° | ||||||||||||
| 3.Power | Model | Power | R.speed | Weight | |||||||||
| Electric Motor | Y180L-4 | 22kw | 1470r/min | 190kgs | |||||||||
| Diesel engine | 4L68 | 24kw | 1500r/min | 215kgs | |||||||||
| 4.Rotary Table | |||||||||||||
| Type | Double-cylinder feeding and mechanical rotation | ||||||||||||
| Spindle diameter | 80mm | ||||||||||||
| Spindle speed | Forward(r/min) 58 101 160 221 234 406 640 885 | ||||||||||||
| Reverse(r/min) 46 183 | |||||||||||||
| Max. torque | 3000N*M | Feeding travel of spindle | 600mm | ||||||||||
| Max.uplifting force of spindle | 60KN | Max.feeding force of spindle | 45KN | ||||||||||
| 5.Hoist | |||||||||||||
| Type | Planetary gear transmission system | ||||||||||||
| Diameter of wire rope | 14mm | ||||||||||||
| Bobbin capacity | 45m(6 layers) | ||||||||||||
| Max. hoisting force (single rope) | 30KN | ||||||||||||
| Lifting speed | Hoisting velocity(second layer)0.45 0.785 1.24 1.71 | ||||||||||||
| 6.Clutch | |||||||||||||
| Type | A typical 130-type vehicle-specific dry single-disc friction clutch | ||||||||||||
| 7.Hyraulic system | |||||||||||||
| System pressure | |||||||||||||
| Rated pressure | 8Mpa | Max. pressure | 10Mpa | ||||||||||
| Oil pump | |||||||||||||
| Type | Oil gear pump(CB-E25) | Displacement | 25ml/r | ||||||||||
| Rated speed | 1500r/min | ||||||||||||
| Rated pressure | 16Mpa | Max. pressure | 20Mpa | ||||||||||
| 8.Frame | |||||||||||||
| Type | Sliding type (with base frame | ||||||||||||
| Movable travel of drill | 460mm | Distance between drill and hole-opening | 260mm | ||||||||||
| 9. Dimension (L*W*H) | 2510*950*1820MM | ||||||||||||
| 10 Weight (engine is not included) | 1300kgs | ||||||||||||
| 11.GY-300T with hydraulic tower | |||||||||||||
| Vertical height | 9m | ||||||||||||
| Adjusted angles of drill-tower (can drill horizontal holes) | 45-90° | ||||||||||||
| Lifting height | 8m | ||||||||||||
| Dimension | 4*4*9m | ||||||||||||
| Weight(include frame) | 1300kgs | ||||||||||||
