Metal Straight Lines Laser Marking Machine

Product Description

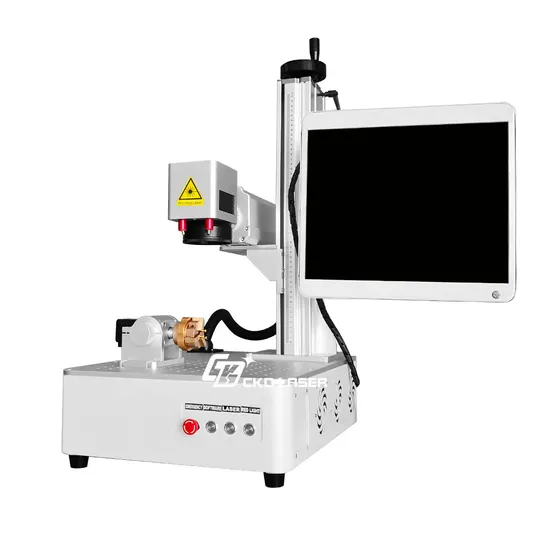

CKD-PLMN V20.02H is suitable for small workshops who need batch processing as well as making unique customized workpieces. It is portable, all-in-one and easy operation.
The marking head of CKD-PLMN V20.02H is built-in double focus tools, which helps easily get the right focus when three dots overlap, and is also helpful to know the degree of off-focus to mark special effects. According to the application, the marking head can change directions, this makes the machine adapt more situations.
What material this machine can mark and what effects it can engrave?
CKD-PLMN V20.02H can mark logo on metal and some non-metal, such as plastics, oil painted materials, black paper and so on. It can mark vector figure, bit map / photo, series numbers, QR code, bar code and so on.
Application examples: Rotary marking on cup, words marking on bracelet, figure marking on jewelry, gradient ramp marking on stainless steel, deeply engraving on metal, photo printing on metal tag, text or figure marking on faucet belt fastener, brand marking on tableware, such as spoon, knives and so on.
The standard laser scan scope for CKD-PLMN V20.02H is 100*100mm, users can choose other scopes for big scope application when choose bigger power.

Type	Laser source	Function	Scan scope	Operation
CKD-PLMN-20	Fiber, Q-switched, 20W	Mark	70*70/100*100 /150*150mm	Windows computer + EzCad2 marking software
	Fiber, MOPA, 20W
CKD-PLMN-30	Fiber, Q-switched, 30W	Mark, engrave	70*70/100*100/ 150*150/200*200mm
	Fiber, MOPA, 30W
CKD-PLMN-50	Fiber, Q-switched, 50W	Mark Engrave Cut
CKD-PLMN-60	Fiber, MOPA, 60W
CKD-PLMN-100	Fiber, MOPA, 100W		70*70/100*100/ 150*150/200*200mm

The user can choose this machine with rotary marking function or not. Rotary marking is for marking words or figure around the cylinder or inside the ring. The rotary is optional, CKD-PLMN V20.02H can match rotary of 50/69/80/100mm chuck diameter.
Normal using devices for choosing: protective goggle, rotary, cutting fixture, X-Y table, position bar. More details, please check on "accessary" branch under "product" item on our website.

Optional devices:
Rotary	50 /69 mm for jewelry
	80mm
	100mm
	Multi-stations
Laser protection	Goggle
	protective glass
Others	Position bars
	Cutting fixture
	Motorized focus
	One more lens

The travel distance of CKD-PLMN is big, this allows it can mark big material.
This all-in-one design save lots of time from calibration for new users. It is available in two configurations 110/220V.
