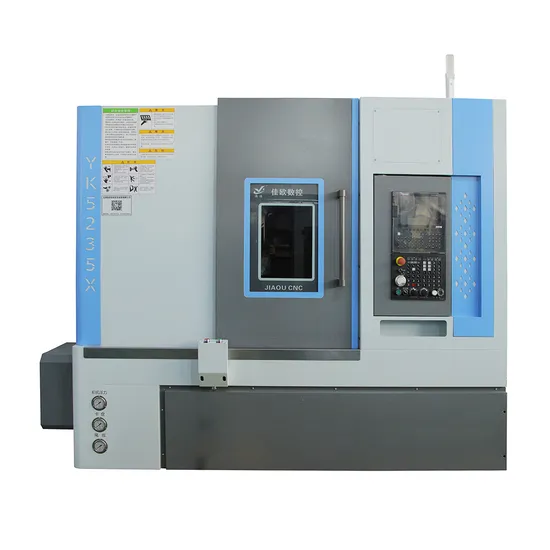

Advanced Multi-Functional CNC Lathe for Precision Machining

Product Description

Product Description

1. Advanced Multi-Functional Machining
This CNC lathe integrates turning and milling capabilities with a BMT55 power turret and Y-axis, enabling the efficient production of complex parts in a single setup. This feature minimizes manual interventions, improving productivity and precision.
2. Optimized 30° Slant Bed Structure
The 30° slant bed design maximizes machining space while improving chip evacuation and ergonomics. This structure also enhances machine stability, ensuring consistent performance during high-speed and heavy-duty operations.
3. Hydraulic Tailstock for Superior Support
The hydraulic tailstock offers robust support for machining long or heavy workpieces, reducing deflection and ensuring excellent accuracy and surface finish, even during extended operations.
4. Precision Components from Global Leaders
The lathe incorporates high-precision components sourced from Taiwan, Japan, and Germany. These parts ensure exceptional reliability, longevity, and consistent machining accuracy for demanding industrial applications.
5. Reduced Cycle Times for Complex Parts
With integrated turning and milling capabilities, this machine significantly reduces cycle times while improving part quality, making it ideal for industries requiring fast turnaround and high efficiency.
6. Ideal for Complex and High-Precision Workpieces
The advanced design and functionality make this machine suitable for aerospace, automotive, medical, and general manufacturing sectors. It excels in machining intricate parts with superior precision and repeatability.
Product Parameters

Machining Capacity	Swing over bed	mm	ф600
	Swing over carriage	mm	ф320
	Max machining length	mm	300
	Max turning dia	mm	ф380
	Max bar material size	mm	ф52
	Distance between centers	mm	450
	Interference diameter	mm	ф190
Spindle	Spindle nose	-	A2-6
	Spindle bore	mm	ф67
	Taper of spindle inner hole		Metric 70(1:20)
	Spindle motor power	kw	11
	Chuck size	inch	8
	Spindle speed	rpm	200-3000
Axes specs	Axes travel	mm	X200 Z350 Y±50
	Axes fast moving	m/min	X20 Z22 Y18
	Repeatable positioning accuracy	mm	X0.003 Z0.005 Y0.003
Tool type	Turret	-	12-330-BMT55-Y
	Tool holder size	mm	25*25/ф32
Tailstock	Tailstock form	-	Hydraulic
	Quill inner taper	MT	4#
Other specs	Drive type	kw	2.2
	Programming		ISO standard
	Cooling motor	w	370
Measurements	Dimension	mm	around 2800*1700*2100
	Weight	kg	around 3400

Certifications
We have our own independent R&D and design team and have applied for a number of technical patents. From high-precision spindles to bed bodies to external sheet metal, the R&D and design department designs and the production department implements, giving us full control over design and production autonomy, making it more flexible and changeable.
Company Profile
Yuhuan Jiaou CNC Machine Tool Manufacturing Co., Ltd. is located in Bingang Industrial City, Shamen Town, Yuhuan City. Our company is a technology-based enterprise, specializing in the R&D, production and sales of CNC machine tools, and has a professional technical and sales service team who has long been engaged in the design and development of CNC machine tools, constantly innovating and advancing with the times. The precision CNC lathes designed for the metal working, including gang type, turret type, mill-turn compound type, can easily handle complex, precise, small-batch, and multi-variety part processing problems, and provide customers with targeted and efficient metal cutting solutions, creating more possibilities for their intelligent and automated production processing.
Equipped with a complete quality testing system and sophisticated testing instruments, our company has passed the ISO9001 system certification to ensure that we provide customers with high-quality equipment and fast after-sales service.
We adhere to the business philosophy of "Detail first, customer first, and creating maximum value for customers", and always implements the quality guideline of "Quality first, continuous improvement". We provide full-service from pre-sales to after-sales, from products to designs, and wholeheartedly commit to providing customers with thoughtful, advanced, high-quality, cost-effective equipment.
Creating the greatest value for you is of most significance for Jiaou's efforts!
Yuhuan JIAOU CNC has multiple production workshops, from bed component blank processing, optical and mechanical assembly, installation and debugging, sheet metal laser cutting and bending, external protective sheet metal spraying, etc., all of which are independently produced and processed.
Packaging & Shipping
FAQ
Q: What's the availability of spare parts?
A: We maintain a comprehensive stock of spare parts with quick delivery options.
Q: What CNC control system does it use?
A: Our machines can be equipped with different brands of CNC control systems, such as FANUC, SIEMENS, SYNTEC, KND, GSK, etc.
Q: Do you provide operator training?
A: Yes. We welcome your engineers or operators to have operator training at our site. And we are able to provide online technical support as well.
Q: What's the lead time for delivery?
A: Faster delievery time. 10-20 days for our standard regular machines, the delivery time of customized machine need to be negotiated.
Q: Is customization available?
A: Yes. We have rich experience in custom processing and can provide flexible customization services from bed to processing parameters to appearance.
