Premium 25 Ton Xe265c Crawler Excavator for Heavy Duty Work

Product Description

Product Description

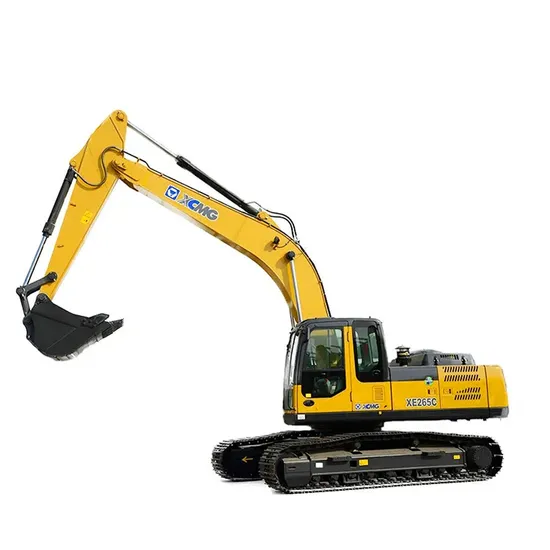

XE265C hydraulic excavator equipped with a backhoe boasts strong power, sufficient sturdiness, reliable durability, low fuel consumption, able to provide users with excellent driving and control experience based on cab low-frequency noise analysis control, improvement on excavator's sound vibration comfortableness, impact prevention of the control system and other advanced technology. This product can be used in road engineering, construction of farmland water conservancy, port construction and other earthwork.

*Ecological and economical: Efficiency main valve increases relief pressure and reduces pressure loss. Smart matching technology ensures higher operating eficiency and lower fuel consumption.
*Multiple application: Different boom, stick and bucket combinations maximize utilization in different conditions. Multi-functional ielligent work tool control system can meet diferent operating requirements such as digging, breaking and dismantling. Instantaneous boost function copes with complex working conditions.
*Comfortable and safe: Air Conditioner and Heater with Double stage air filter ensure the appropriate temperature. Silicone rubber shock absorber is adopted in the cab. Air-suspension seat equipped with electric heating function. Integrated control panel and large display screen provide multiple information.
Product Parameters

Operating weight	25500kg
Bucket capacity	1.05~1.25m³
Output power	135.5/2150kW/ r/min
Torque/speed	637/1800N.m
Displacement	6.494L
Travel speed(H/L)	5.9/4.0km/h
Rotating speed	11.3r/min
Gradeability	≤35°
Ground pressure	50.1kPa
Bucket digging force	179kN
Arm digging force	125kN
Maximum traction	194kN
Rated flow of main pump	2×256L/min
Pressure of prime valve	34.3/37MPa
Pressure of travel system	34.3MPa
Pressure of swing system	28MPa
Pressure of pilot system	3.9MPa
Fuel tank capacity	400L
Hydraulic tank capacity	240L
Engine oil capacity	25L
Overall length	10160mm
Overall width	3190mm
Overall height	3100mm
Width of platform	2830mm
Length of crawler	4640mm
Overall width of chassis	3190mm
Width of crawler	600mm
Wheel base of crawler	3842mm
Crawler gauge	2590mm
Min. ground clearance	485mm
Min. tail swing radius	2985mm
Max. digging height	9662mm
Max. dumping height	6810mm
Max. digging depth	6895mm
Max. digging depth at the range of level 8 feet	6750mm
Max. vertical wall digging depth	5480mm
Max. digging reach	10240mm
Min. swing radius	3850mm
