Heavy Duty CNC Steel Plate Drilling Machine for Beams

Product Description

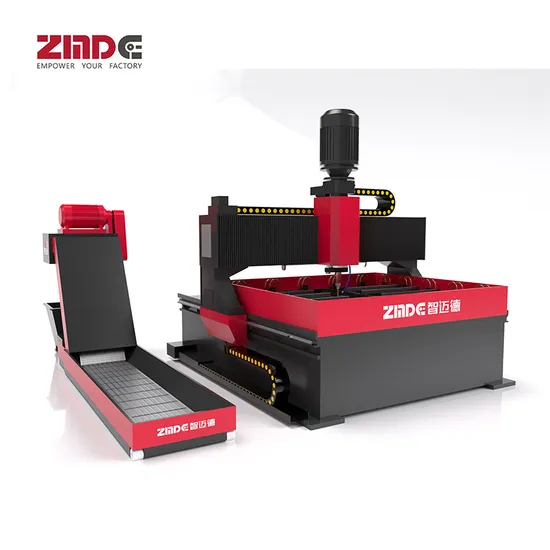

Zmde Heavy Duty CNC Steel Plate Drilling System Steel Beam Drilling Machine
>Unmatched Cost-Effectiveness <
1. Built from robust materials ensuring low failure rates and minimal maintenance costs. Key components such as ball screws, linear guide vices, hydraulic parts, electrical parts, servo motors, and frequency converters are sourced from industry-leading brands.
2. Features CRT display for automatic chip removal, significantly cutting down manual cleaning time.
3. High precision leading to superior workpiece quality and reduced consumable costs.
>Effortless Operation, Superior Productivity <
1. User-friendly human-machine interface with visual clarity, capable of generating automatic machining programs.
2. Leveraging CNC and PLC controls for impeccable positioning accuracy.
3. Workpieces secured by hydraulic clamps, operable via foot switch for utmost convenience and labor efficiency.
4. Equipped with 12 rapid hydraulic clamps around the table, enabling simultaneous clamping of four groups of workpieces.
5. Small workpieces can be clamped at the table corners to drastically reduce production preparation time and elevate efficiency.
6. Corner clamping of small workpieces shortens production preparation periods, significantly boosting efficiency.
> Reliable Quality, Diverse Applications <
1. Essential components like the gantry, column, and table are constructed from solid materials, with the main machine's weight up to 6300kg.
2. Versatile for various industries, serving as the core equipment for connecting plate processing.
3. Accommodates a wide range of drilling diameters, from 12mm to 50mm.
> Ideal for Various Production Scenarios <
1. Efficiently handles continuous multiple-batch production of single flat type workpieces.
2. Capable of small batch production of various workpiece types, processing different shapes and sizes like rectangular, round flange, and polygonal plates. Can simultaneously process two or four plates of different specifications.
3. Produces multiple layers of thinner sheets in stacks, drilling holes up to a maximum thickness of 100mm.
4. Utilizing upper computer software to automatically process start and end points, capable of drilling through holes, blind holes, step holes, and chamfering hole ends.
> Seamless Production Process Automation <
1. Integrates line board technology, achieving high automation with automatic positioning based on drilling programs.
2. Automatically adjusts optimal feed volume according to different hole diameters.
3. Supports automatic and continuous processing of large hole diameters with single-pass processing and forming.
4. Equipped with an automatic chip removal function.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg
