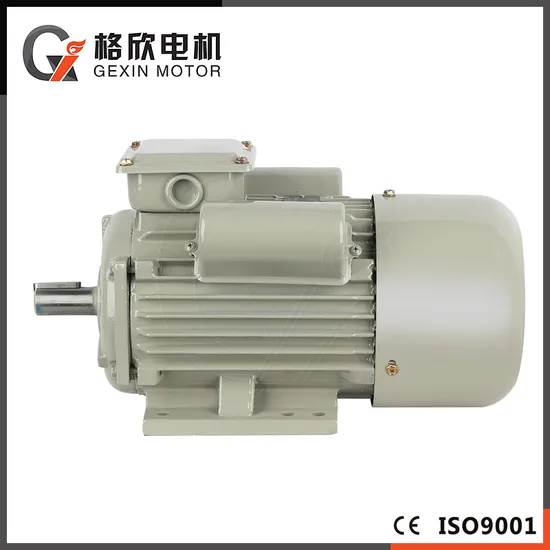

Yc Series 220V AC 2800rpm Economic and Efficient 3HP Compressor Motor Single Phase

Product Description

GEXIN YC/YCL Series Single Phase Capacitors Industrial Electrical Asynchronous Motor
Gexin Electromechanical Co.,Ltd.is a company specializing in the production and processing of YD, YCT, YEJ, YVF, YBE4, Y. YE3 .YE4 and other three-phase asynchronous motors. It has a strong R&D team, and the motor produced by the company is brand new, with national standard stator and rotor and all copper. Product 3c certification, strict technology, each processed part has passed the incoming QC, and the manufacturing process inspection. With rich production experience and advanced production equipment, the company has established long-term cooperative relations with many enterprises with strong strength, reasonable price and high-quality service. Business is sincere, and being the first person in business is our aim.
Product Description
YC/ YCL Sries Motors are fully enclosed single- phase asynchronous Motors with the latest design . With features like simple structure, reliable performance, easy maintenance and achievement of technical-economic targets, the motors have widely used in the air compressor,pumps, refrigerator, washing machine, medical equipment, wood-working machinery, all kinds of agricultural and so on. YC motor series have protection Class of E or B, Cooling method of IC411.
Under reted voltage and 50Hz,the starting torque is three times more than the rated torque and 60Hz is more than 2.75 times.Motors for 4 HP and over are of capacitor start and run type.They all have the advantage of high starting torque,smooth running,low temperature rise,low noise and greater overload performance.
Motor Features:1. Frame size:H80-132;2. Power: 0.37-5.5KW;3. Voltage: 110V, 220V ;4. Rated Frequency: 50 Hz/60Hz ;5. Poles: 2/4 6. Speed: 3000/1500 r/min7. Ambient Temperature: -15°C-40°C 8. Duty: continuous (S1);9. Insulation Class: B , F;10. Protection Class: IP44, IP54;11. Frame material: Cast iron body 12. Cooling Method: IC411 Standards;13. Altitude: No more than 1,000 meters above sea level;14. Packing: 71-132 frame be packaged by carton&pallets
15. Certifications: CE, CCC, ISO9001: 2008
Exploded View
Product Parameters
Installation Instructions
Installation Diemsions
Detailed Photos
Advantage
* 100% Copper wire,100% Power Output;
* 100% test after each process and final test before packing.
* 20Years Manufacture Experience;
* Single Phase Motors are with centrifugal switch ,which are suitable for high start torque application like air compressor,fans,pumps and so on;* Energy saving;* Superior Life;* Quiet Operation;* Easy maintance;* Be made of selected quality materals.latest design in entirety;
*OEM Service
*CE/ISO Approved
*20-30days lead time
Quality Assurance:
1 year quality warranty and fast after-sales service.
Gexin Electromechanical Co., Ltd., which has 150 employees, an annual output value of $1800w and an area of 26000 square meters.

FAQ
1: Are you a factory or just a trading company?
A1: Manufacturer,and we focus on the development and production of electric motors for more than 20 years.
Q2: Is customized service available?
A2: Of course, OEM & ODM both are available.
Q3: How can I get the quotation?
A3: Leave us message with your purchase requirements and we will reply you within one hour on working time. And you may contact us directly by Trade Manager.
Q4:Can I buy one as sample?
A4: Yes, of course.
Q5: How about your quality control?
A5: Our professional QC will check the quality during the production and do the quality test before shipment.
Q6: What is your payment term?
A6: 30% T/T in advance, 70% balance when receiving B/L copy Or 100% irrevocable L/C at sight.
Q7: What is your lead time?
A7: About 20-30 days after receiving advance deposit or original L/C.
Q8: What certificates do you have?
A8: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
Q9: What warranty do you provide?
A9: One year, during the guarantee period, we will supply freely of the easy damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for alternator maintenance.
