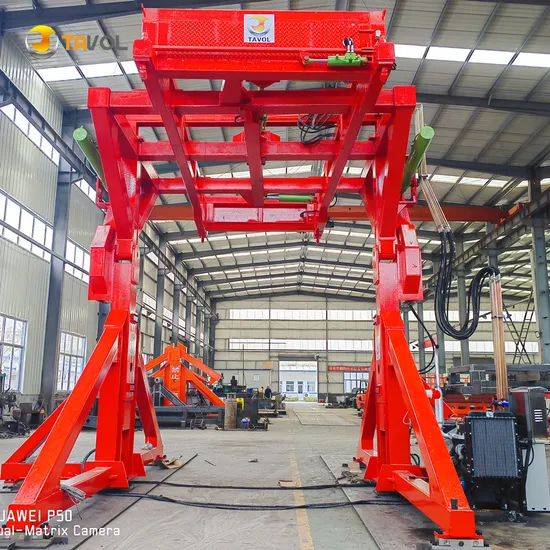

Container Tilting System Double/Single Lane 20FT Container Tilter 20feet Container Flip Equipment

Product Description

Product Description
The container tilter adopts full hydraulic operation, which is safe and efficient. The auxiliary safety device has complete functions and can be customized intelligent remote control operation,Dynamic measurement and weighing, remote network monitoring.
It has been widely used in grain, coal,cement, lime, chemical industry, port, railway freight yard and other warehousing and logistics transportation industries,effectively solving the problems of inadequate packing, high labor cost, low packing efficiency and other problems existing in the current container bulk loading and unloading.
Our Advantages
Advantages of medium turnover container turnover machine compared with traditional equipment: 1. The container can be placed vertically and loaded to the maximum extent.
2. Shorten the packing time by 2-3 times and improve the efficiency of packing.
3. Full hydraulic control, simple operation, safe and reliable.
4. Reduce the packing personnel, only one person can operate.
5.Significantly reduce the cost of packing, improve the profits of enterprises.
6. Effectively reduce dust pollution, in line with the national environmental protection policy.
7. By adding the function modules of remote control system, weighing system and
networked control system, the customized requirements of different customers can be realized.

Product Parameters

Model		FZJ35-SS	FZJ35-SD	FZJ35-DS	FZJ35-DD
		Double Lane Double Side	Double Lane Single Side	Single Lane Double Side	Single Lane Single Side
Aplicable to container size		20GP container
Moving way		Piggyback Movable
Rated loading capacity		35T
Minimum height of liting point		3780mm
Hoisting height		800mm
Slide distrance	left &right	2600mm		350mm
	forward&back	600mm
Tilting angle		180'	90'	180'	90'
motor power		18.5KW
Rated working voltage		380V
Working pressure of hydraulic system		25Mp
Quantity of cylinder		12Pieces	10Pieces	11Pieces	9Pieces
Overall dimension		9200*6050*5550mm
Weight		15T	14T	13T	12T
Optional		* Weighing system * Vibrator * Fuel tank heating system * Hydraulic oil cooling system * Remote Control System
Different Types And Functions Of Container Turnover Machines Can Be Customized According To Customer Needs

Different Models

FZJ35-SS Double Lane Double Side
Loading Capacity:35T
Motor Power:18.5KW
Hydraulic System Working pressure:25Mpa
Tilt Angle:0--180°
FZJ35-SD Double Lane Single Side
Loading Capacity:35T
Motor Power:18.5KW
Hydraulic System Working pressure:25Mpa
Tilt Angle:0--90°
FZJ35-SS Single Lane Double Side
Loading Capacity:35T
Motor Power:18.5KW
Hydraulic System Working pressure:25Mpa
Tilt Angle:0--180°
FZJ35-DD Single Lane Single Side
Loading Capacity:35T
Motor Power:18.5KW
Hydraulic System Working pressure:25Mpa
Tilt Angle:0--90°

Packaging & Shipping
- Steel structure.........................Plastic sheeting
- Components............................Fumigation free wooden box
- By *40HQ container or 40 OT container
Company Profile
Tavol Group is the professional Forklift , Lift Platform and Container Tilter manufacturer in China .
1.We design,manufacture,installation,repair,maintenance, trade and export following products:
>>> Diesel forklift,electric forklift
>>> Scissor Lift , Cargo Lift etc
>>> Container Tilter
2. Has Passed ISO9001, CE, SGS, BV, AAA, WIPO Madrid International Trademark and Special Equipment Manufacturing License etc.

*20+ Years Production Experience
*Professional Engineer Team
*Factory Directly Supply
*Fast Delivery Time
*Accept OEM ODM and DIY
*Perfect After-Sales Service System
*Lifetime Maintenance Guide
*Free Installation Guide
After Sales Service
One-stop Material Handling Equipment Program Service:
>>>>>1.Professional sales-staff will provide you with a one-stop solution for material handling machinery&equipment services.
>>>>>2.Provided Guarantee of repair replacement and refund of substandard products Together with container tilter, so that you have no worries after purchase.
>>>>>3.Perfect after-sales service & system.
>>>>>4.Provide services for global agents. Relieve the worries of agents. Better develop overseas markets.
Pre-Sales Service
* Inquiry and consulting support.
* Photos&Videos for your order before shipment.
* Video visiting factory.
After-Sales Service
* Training how to use the machine.
* Whole life-time supply for spare parts.
* User manual and details videos if you requested.
FAQ
Q1: Are you the factory or the trading company?A1 :We are the factory,we located in Taian City,Shandong Province,China. Q2: What after-sales service can your company provide?A2 We can provide technical support and service & maintenance manual support! Q3: Can you provide spare parts for free?A3 :Of course.We provide spare parts for free Q4: Can you provide OEM?A4: Yes,we can.We provide OEM Q5: How about the delivery time?A5: 5-15 days according to the different quantity. Q6: What your term of payment?A6: We accept TT, Letter of credit, Online bank payment, Support ****** trade insurance etc. Q7. What is the MOQ?A7: 1 set is okay. More quantity wit nice discount. Q8: How can I get the best price?A8: Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.
