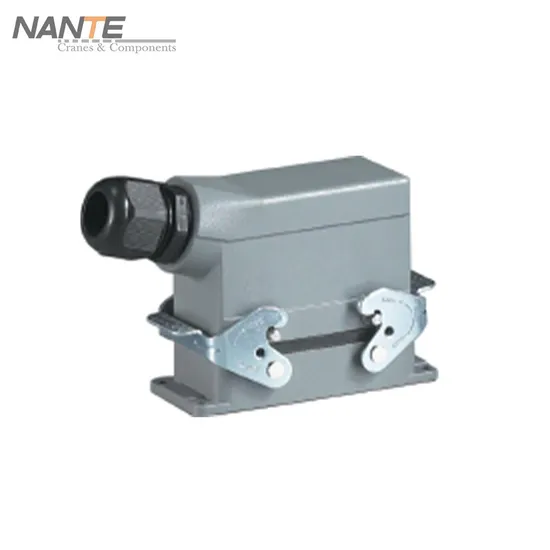

Side Entry Pg21 Cable Gland16pin Socket for Control Panel

Product Description

Side entry PG21 cable gland16pin Socket for control panel Product Description
General description:
Nante can provide Socket for control panel and festoon system which can reduce installation time and costs for customers. Their system comes with rugged die cast aluminum housings with dual locking elements to ensure a secure connection. A standard 16-pin plug and receptacle is offered for applications from 16 to 60 Amps and for wire sizes up to 14 AWG.

Design Feature:The connector have the features:
1. Quick connect and disconnect
2. Easy for assemble
3. High quality aluminum housings with dual locking elements
Accessories:
Male insert
Male insert with screw terminal, crimp terminal (order contacts separately) or cage-clamp terminal.
Female insert
Female insert with screw terminal, crimp terminal (order contacts separately) or cage-clamp terminal.
Hoods
Hoods with low or high construction, side or top cable entry, 2 or 4 bolts, 1 or 2 locking levers.
Housing
Bulkhead mounting housing with or without protection cover, 1 or 2 locking levers.
Surface mounting housing with low or high construction, with or without protection cover, 2 or 4 bolts, 1 or 2 locking levers, 1 or 2 cable entries.
Cable entry protection
Cable glands with normal or multiple sealing.
Metal or plastic cable glands.
Special cable entry protection or extensive range of accessories.
Product Application
NANTE Socket is used for plugging and connecting cables for control panel and festoon system. Widely applied for workshop lifting equipments such as overhead crane, gantry crane, etc.
Product Parameters

Socket Feature
Rated Voltage	400V	500V	690V
Rated Current	16A	35A	80A
Pin Number
4Pin		HSB-04
6Pin			HK4/2
10Pin	HE-10
16Pin	HE-16
24Pin	HE-24
Max.Wire Gauge	4.0mm2/12AWG	6mm2/10AWG	16mm2/5AWG
Stripping Length	7.5mm	11.5mm	14.0mm
Flame Rating	V0 ( Acc.to UL94 )
Protection Class	IP65
Cable Gland	M20, M25, PG16, PG21
