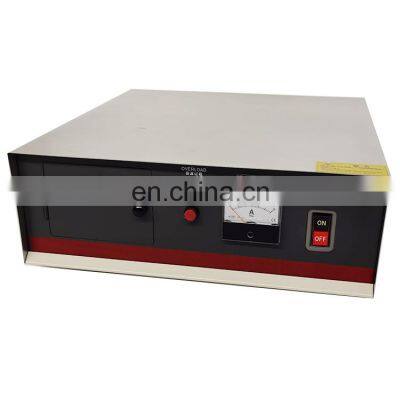

Professional Customized High Frequency Ultrasonic Sewing Generator for Ultrasonic Lace Machine

Product Description

Product Description
Products Description
Professional Customized High Frequency Ultrasonic Sewing Generator for Ultrasonic Lace MachineDIZO team would like to supply you the exact technical parameters after confirming your related technical processing requirements as the application, material feature, thickness, dimension, efficiency demand etc. You can get one-stop source for related parts of Ultrasonic welding machine. Ultrasonic welding machine: transducer, booster, welding horns, generator etc.

Service:	OEM/ODM
Voltage:	110V/220V
Power:	1800W/2600W/3200W/4200W Depend on Usage
Frequency:	15KHz/20KHz/30KHz/40KHz/60KHz/70KHz Depend on Usage
Application:	Plastic, Non-woven Fabric, Nylon and so on
Welding Area:	Customize Square width 80-320mm, Round 25-95mm diameter
Delay Time/Weld time/Hold Time:	0.01~9.99S
Welding Type:	Continuouly/Intermittet
Max Air Pressure:	0.7MPa
Maximum Stroke:	75mm
Working Temp.	-10-40℃
Pressure system	Pneumatical/Manual
Current Indicates	Output Amplitude Indicates
Weight:	100-220KG Depend on Usage
Components	Generator+transducer+welding head+Franket ring
Material:	Aluminum
Material of welding horn:	Magnesium Aluminum Alloy/Titanium Alloy/Steel Alloy
Core selling points:	Accurate temperature control/Flexible Manufacturing/Low Maintenance Cost/Sustainable/Low Noise Level/High Safety Level/Easy to Operate/Long Service Life/High Rigidity/High-accuracy

Details Images
Ultrasonic welding is the process of converting electric current into electric energy through ultrasonic generator. The converted high-frequency electric energy then converted into the mechanical motion of the same frequency again through the transducer, and the mechanical movement is transmitted to the welding head through a set of horn device which can change the amplitude. The vibration energy received by the welding head is transferred to the joint of the work piece to be welded. In this area, the vibration energy is converted into heat energy by friction, and the plastic is melted. Ultrasonic can be used not only to weld hard thermoplastic plastics, but also to process fabrics and films. Heat energy comes from the reciprocating movement of a work piece on another surface with a certain displacement or amplitude under a certain pressure. Once the expected welding degree isreached, the vibration will stop, and at the same time, there will still be a certain pressure applied to the two work pieces to cool and solidify the just welded parts, thus forming a close combination.
DIZO team would like to supply you the exact technical parameters after confirming your related technical processing requirements as the application, material feature, thickness, dimension, efficiency demand etc. You can get one-stop source for related parts of Ultrasonic welding machine. Ultrasonic welding machine: transducer, booster, welding horns, generator etc.
Ralated Products
Company Profile

Q1: Are you a manufacturer?

A1: For over 15 years DIZO have developed an expertise in plastic joining, we master the design, the manufacturing and the maintenance of molds.

Q2: Where is your factory? Can I visit your factory?

A2: Dizo located in the city of Wuxi.

Q3: How to buy your machine?

A3: Please advise specific by mail, after confirm with machine model and price, we will sign a PI for confirming when the first deposit was done, machine manufacture begins, When the balance is complete we will ship out and provide the tracking number.

Q4: Are we still need to install the machine after we got?

A4: All of the machines will be tested ready before shipping, video, and manual will attached for use and master the machine well.

Q5: How about your warranty?

A5: 1. All of our products for one year warranty; 2. 24-hour telephone service; 3. A large stock of components and parts, easily worn parts; 4. Toolkit will attach with Machine.

Q6: How can you guarantee we receive a good performance product?

A6: Dizo applied series inspection process during production When the machine was finished. QC will provide inspection video and pictures for double check the quality control, and we will send the troubleshoot and solutions if needed; Also third part or customers come to the factory have field inspection is welcome.

Q7: How soon can you deliver the equipment?

A7: Dizo will deliver your equipment by within 7 days(stock available); Customized equipment or no inventory machine normally need 15-30days.

Q8: Who do I talk to when I want to start an application?

A8: Dizo has experiences of sales engineers to provide the assistance and support you require.

Q9: Can I get a discount or can you do something with the price?

A9: Dizo sales contact or Key Account Manager can answer your cost-related questions. Please email us. Thank you in advance.

Q10: Packaging & Shipping

A10: Provide sturdy plywood case packaging machines, safety and meet the international export standard.
