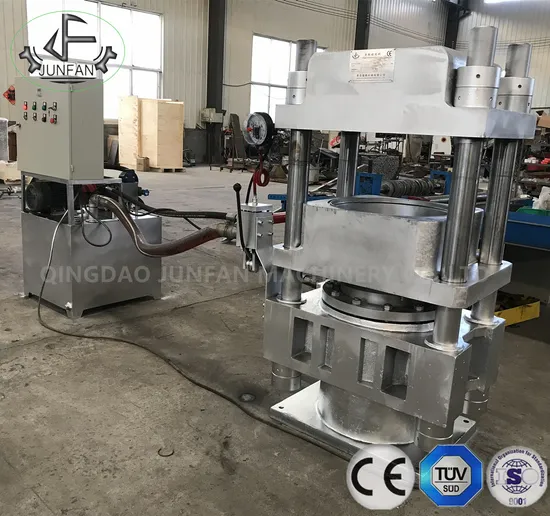

China Spplier Column Plate Rubber Hydraulic Vulcanizing Press (600X600)

Product Description

China Spplier Column Plate Rubber Hydraulic Vulcanizing Press (600x600) Application
This Rubber coated dumbbells hydraulic vulcanizing press machine is specialized in making rubber dumbbells, hex dumbbells etc. Also it can be used for molding other rubber products, like rubber seals, rubber gasket, rubber mats, steel bonded rubber etc
Customer customized Mould for Ball
Ralated Different Type Press Machine
COMPANY PROCESSING WORKSHOP
Vulcanizing Press Describe
1. The press has two electrical platens (one working layer)
2. Automatic press with PLC.
3. Height from floor to underside of top heated platen according to clients requirements design.
4. Daylight when press open according to clients requirements design.
5. Independent control panel.
6. Hot plates made of HT200, surface by surface grinding processing, plate face to face parallelism accuracy ± 0.05mm, finish is 1.0μM.
7. The wires are connected machines, as long as the power supply is connected, the machines can work.
>>MAIN TECHNICAL SPECIFICATION

Mdel	Total Pressure (MN)	Daylight (mm)	Working Layer	Piston Stroke (mm)	Main Motor Power (KW)	Overall Diameter (L x W x H) (mm)
XLB-350×350×2	0.25	125	2	250	2.2	1200×580×1200
XLB-400×400×2	0.50	125	2	250	2.2	1400×500×1400
XLB-600×600×2	1.00	125	2	250	2.2	1880×820×1680
XLB-750×850×4	1.60	125	4	500	3	1730×930×2460
XLB-900×900×2	2.5	200	2	400	4	2345×960×1385
XLB-1200×1200×1	3.15	300	1	300	4	2800×1300×2300
XLB-1500×1500×1	8.00	800	1	800	16.5	2200×2200×4300
XLB-2000×2000×1	20.00	400	1	400	11	3600×3000×3300

Qingdao Junfan was established in 1990, We are one of the largest and professional manufacturing rubber machinery company in North China. And we have own processing workshop.We also have a professional engineer team, we can help you to special customize the machinery according to your need for meet your produce requirements.Our chief engineer is the president of Local Rubber Machinery Technology Association. he is a deep research on rubber machinery.We can customize the equipment according to the different needs of customers to meet the production needs of customers
COMPANY ADVANTAGE 1. CE, ISO9001, TUV Certificate.
2.100% meet your requirement.
3. Sell to about 126 countries on 6 continents.
4. One year quality guarantee and long-term technical support;
5. With more than 40 years of history in the rubber machine industry.
CUSTOMER VISITED
>>FAQ
1. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.
2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.
3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.
5.How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.
6.How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport.
We will pick up you at the airport.
